Eijkelkamp 04.15.SB Liner sampler set - hard soils (Screw thread, 10 mm, 7 m)

Applications:

Soil sampling above and below groundwater table

Environmental soil research

Undisturbed sampling

Soil texture research

Root zone sampling

Samples are suitable for:

Soil fertility determinations

Assessment of soil structure

Volume weight determinations

Determination of granular composition

Soil technical measurements

Field education


Connection: Screw thread

Maximum root thickness: 10 mm

Maximum sample depth: 7 m

Product material: Stainless steel, iron, other material

Sample diameter: 50 mm

Sample length: 300 mm

Sample specification: Undisturbed

Sample stored in: Tube

Sample volume: 590 ml

Package size: 130 x 50 x 72 cm

Weight: 38 kg

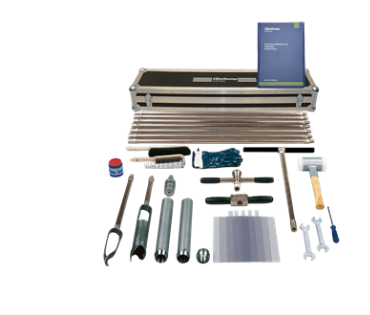

Set contains:

Hand auger for pre- and clean drilling of the bore hole

Core sampler with sampler tubes

Handle with beating head

Thin walled sample tubes

Impact-absorbing hammer

Down-the-hole hammer

Maintenance equipment

Aluminium transport case

Details

Description:

We offer two different sets of liner samplers, this is the one suitable for hard soils thanks to its screw thread connection. The liner sampler has a stainless steel sampler body and the set is packed in an aluminium transport case.

If undisturbed samples are required it can be challenging to remove the sample from the sampler tube. This type of corer uses a sample liner tube inside the sample tube which facilitates the removal of the sample from the tube. The sample, still in the liner, is stored in a container which can be sealed for transport to the laboratory. The sample can be viewed directly in the field without touching it.

Please note that the liner will absorb volatiles.


Features:

Liner allows easy removal of sample

Soil fertility and volume weight determinations

Assessment of (hard) soil structure

Determination of granular composition

Soil texture research


Manual
