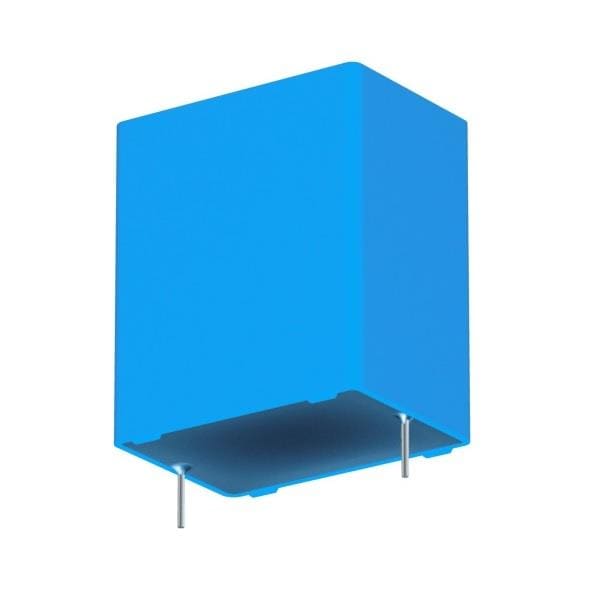

EPCOS B32674D4605K000 Film Capacitors 6.0uF 450volts 10% 27.5mmL/S 0.8mmL/D
Manufacturer: EPCOS Model: B32674D4605K000 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
ESR: 4.1 mOhms
Width: 21 mm (0.827 in)
Height: 31 mm (1.22 in)
Length: 31.5 mm (1.24 in)
Tolerance: 10 %
Dielectric: Polypropylene (PP)
Lead Style: Straight
Capacitance: 6 uF
Unit Weight: 16 g
Lead Spacing: 27.5 mm (1.083 in)
Qualification: AEC-Q200
Number of Pins: 2 Pin
Capacitance - nF: 6000 nF
Termination Style: Radial
Voltage Rating AC: 275 VAC
Voltage Rating DC: 450 VDC
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
