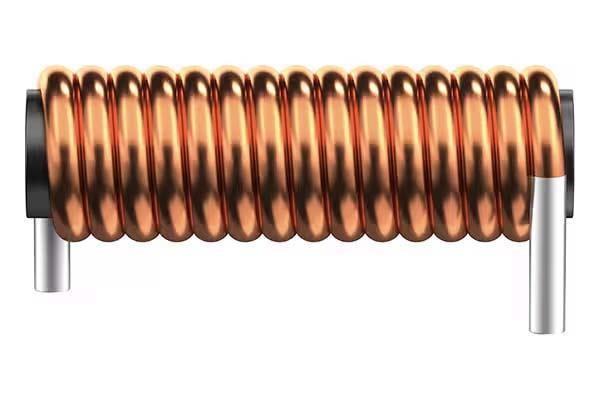

EPCOS B82116B2625A010 Choke 3.3uH 10A 3.7mOhm 1MHz
Manufacturer: EPCOS Model: B82116B2625A010 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Length: 25 mm
Diameter: 10 mm
Core Type: Rod
Shielding: Unshielded
Tolerance: 20 %
Inductance: 3.3 uH
Application: Power Line Choke
Termination: Standard
Unit Weight: 10 g
Lead Spacing: 23 mm
Core Material: Ferrite
Lead Diameter: 1.5 mm
Qualification: AEC-Q200
Mounting Style: PCB Mount
Test Frequency: 1 MHz
Termination Style: Radial
Maximum DC Current: 10 A
Maximum DC Resistance: 3.7 mOhms
Maximum Operating Temperature: + 140 C
Minimum Operating Temperature: - 40 C
