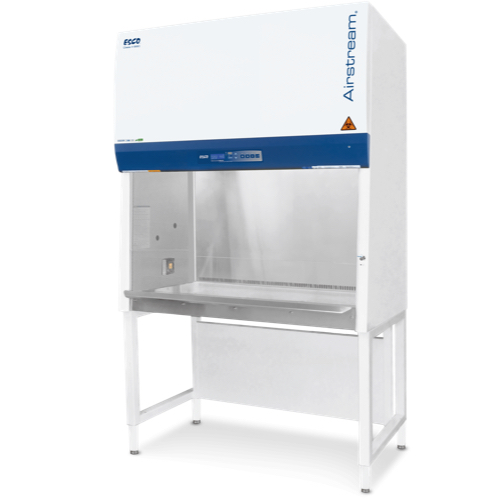

ESCO AC2-3S8-TU Biological Safety Cabinet (Class II, 220-240 VAC, 50/60 Hz, 0.42 m²)

Stainless Steel Side: 220-240 VAC, 50/60 Hz

Nominal Size: 3 ft

External Dimensions (W x D x H):

Width: 1035mm

Depth without arm rest: 767 mm

Depth with arm rest: 823 mm

Height: 1400 mm

Gross Internal Dimensions (W x D x H):

Width: 915 mm

Depth: 580 mm

Height: 654 mm

Usable Work Area: 0.42 m²

Tested Opening: 175 mm

Average Airflow Velocity:

Inflow: 0.48 m/s (95 fpm)

Downflow: 0.35 m/s (69 fpm)

Airflow Volume:

Inflow: 278 cmh

Downflow: 661 cmh

Exhaust: 278 cmh

Required Exhaust with Optional Thimble Exhaust Collar: 320 m³/h

Static Pressure for Optional Thimble Exhaust Collar: 29 Pa / 0.11 in H2O

ULPA Filter Typical Efficiency:

>99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA

>99.999% at MPPS, H14 as per EN 1822 EU

Sound Emission per EN 12469: 49.6 dBA

LED Lamp Intensity: 1028 lux

Cabinet Construction:

Main body: 1.2 mm (0.05") 18 gauge electro-galvanized steel with white oven-baked epoxy-polyester ISOCIDE™ antimicrobial powder-coated finish

Work Zone: 1.5 mm (0.06") 16 gauge stainless steel, type 304, with 4B finish

Side Walls: 1.5 mm (0.06") 16 gauge stainless steel, type 304, with 4B finish

Electrical Cabinet Full Load:

Amps (FLA): 10

Heat Load (BTU/Hr): 597

Maximum Power Consumption (5A EOs included): (W): 1880

Nominal Power Consumption: (W): 175

Net Weight: 191 Kg (421 lbs) Cabinet only, excludes optional stand.

Details

Datasheet
