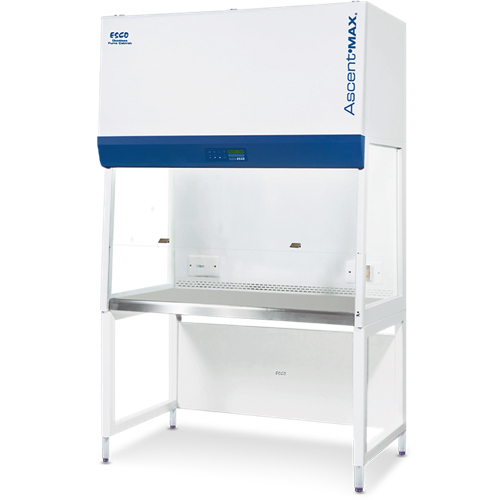

ESCO ADC-4C2 Ascent™ Max Ductless Fume Hood (314 W, 1268 x 596 x 765 mm)

Nominal Size: 1.2 meter

External Dimensions (W x D x H): 1340 x 736 x 1460 mm

Internal Work Area (W x D x H): 1268 x 596 x 765 mm

Standard Filtration Elements:

Pre-filter: Disposable, non-washable polyester fibre, 85% arrestance, EU3 rated

Main filter: Activated Carbon with Granular Media bed (8 different filter types available, codes A-H)

Back-up Filter: Activated Carbon with Granular Media bed (8 different filter types available, codes A-H)

Total Weight of Carbon Filter: 2 x 13.9 Kg each

Control System: Esco Sentinel™ Silver Microprocessor Controller

VOC Sensor: Optional

Airflow alarm: Yes

Auto-Purge Slots: Yes

Inflow Air Velocity: 0.40 m/s - 0.6 m/s (80-120 fpm)

Sound Emission: ≤65 dBA

Fluorescent Light Intensity: >1397 lux

Hood Construction:

Main Body: 1.2 mm (0.05") 18 gauge electro-galvanized steel with white oven-baked epoxy-polyester IsocideTM antimicrobial powder coated finish

Side Walls: Tempered Glass

Work Top: 1.5 mm (0.06") 16 gauge stainless steel, type 304, with 4B finish

Sash:

Sloped Front: 3°

Sash Type: Vertical Sliding or Optional Motorized Sash

Electrical: 110-120 VAC, 60 Hz, 1Φ

Cabinet Full Load Amps (FLA): 3.5 A

Optional Outlets (FLA): 5 A

Cabinet Nominal Power: 314 W

Cabinet BTU/Hr: 1071

Net Weight (Hood only, excludes optional stand): 225 kg
