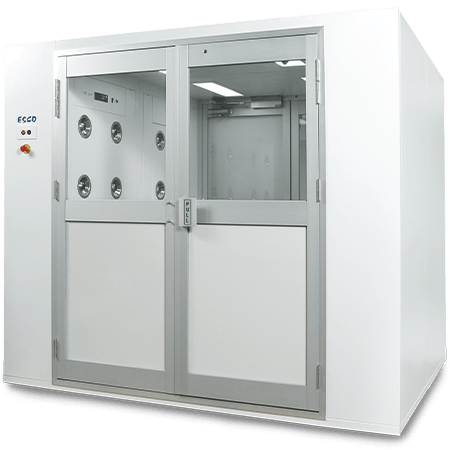

ESCO EAS-3A9 Cleanroom Air Showers (915 x 3000 x 2080 mm)

External Dimensions (W x D x H): 1385 x 3120 x 2205 mm

Internal Work Area, Dimensions (W x D x H): 915 x 3000 x 2080 mm

Clear Door Opening (WxH): 815x2030mm

Air Change (30-18 m/s): 104 - 172 / Hr

Initial Airflow Velocity: 18-30 m/s (3,543 - 5,906 fpm)

Number of Nozzles: 18

Air Shower Duration: Factory set at 12 seconds (adjustable)

Persons Per Cycle: 2-3

Personnel Flow (Persons / Min.): 6-9 Above figures based on: Total Cycle Time of 20 seconds (12 seconds of Air Shower + 4 seconds for buffer time + 5 second blower stopping time delay / personnel

Filtration Efficiency: Main Filter: H14 filter, Pre-Filter: Disposable and non-washable polyester fibers

LED light: 2 x 19W

Air Shower Construction: 1.5 mm/ 0.06"/18 electro-galvanised steel / White oven-baked epoxy antimicrobial powder-coated finish

Electrical: 120-110V, AC, 60/50Hz, 1Ø
