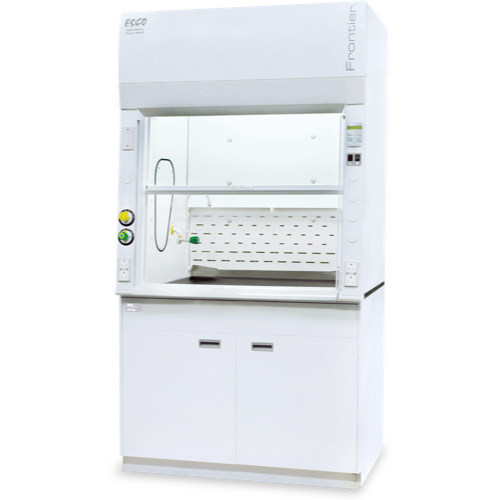

ESCO EFA-4UDRCW-8 Frontier® AcelaTM Fume Hood (220-240 VAC, 996 x 675 x 1230 mm)
Manufacturer: ESCO Model: EFA-4UDRCW-8 P/N: 2090005 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
220-240 VAC, 50/60 Hz, 1ø
Nominal Size: 1.2 meter
External Dimensions: (W x D x H)
Fume Hood unit only: 1220 x 900 x 1400 mm
With Exhaust Collar: 1220 x 900 x 1521 mm
With Fully-opened Sash: 1220 x 900 x 1603 mm
Internal Dimensions: (W x D x H) 996 x 675 x 1230 mm
Exhaust Outlet Diameter and Material: 305 mm (12.0”), Fiberglass
Number of Exhaust Collar: 1
Fluorescent Lighting System:
Description: Pre-wired hood lighting with electronic ballast for energy efficiency and instant start
Lamp Intensity: 930 lux
Controller: Rocker Switches (default). Option to upgrade to SentinelTM XL Microprocessor Controller
Construction:
Main Body: Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating
Internal Liner (default): Esco Resinate™
Worktop (default): Phenolic Resin
Sash Specifications:
Sash Material: Laminated-Tempered and Framed Safety Glass
Sash Configuration: Combination
Sloping: 50° Sloped
Maximum Sash Opening: 670 mm
Electrical:
Cabinet Full Load Amps (FLA): 32 A
Cabinet Nominal Power: 100 W (lighting only)
