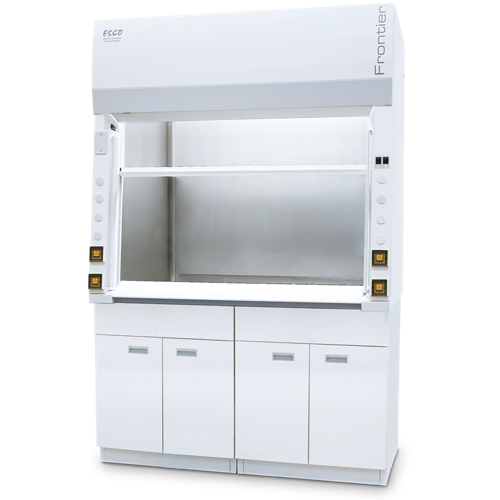

ESCO EFI-6UD4VW-8 Frontier® RadioisotopeTM Fume Hoods (100 W, 1606 x 753 x 1246 mm)
Manufacturer: ESCO Model: EFI-6UD4VW-8 P/N: 2090179 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
220-240 VAC, 50/60 Hz, 1ø
Nominal Size: 1.8 meter
External Dimensions (W x D x H)
Fume Hood unit only: 1830 x 900 x 1400 mm
With Exhaust Collar: 1830 x 900 x 1521 mm
With Fully-opened Sash: 1830 x 900 x 1603 mm
Internal Dimensions: (W x D x H) 1606 x 753 x 1246 mm
Exhaust Outlet Diameter and Material: 305 mm (12.0”), Stainless Steel
Number of Exhaust Collars: 1
Fluorescent Lamp Intensity: 886 lux
Construction:
Main Body: Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating
Internal Liner (default): Stainless Steel 304
Worktop (default): Stainless Steel 304 (Optional upgrade to SS 316)
Sash Specifications:
Sash Material: Laminated-Tempered and Framed Safety Glass
Sash Configuration: Vertical/ combination
Sloping: 5°
Electrical:
Cabinet Full Load Amps (FLA): 32 A
Cabinet Nominal Power: 100 W (lighting only)
Net Weight (Fume hood unit only. Exclude base cabinet/optional stand): 313 Kg
