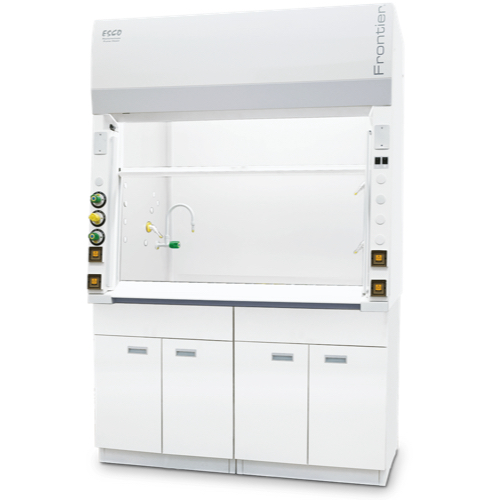

ESCO EFQ-5UDPVW-8 Frontier® Acid DigestionTM Fume Hoods (220-240 VAC 1300 x 689 x 1230 mm)
Manufacturer: ESCO Model: EFQ-5UDPVW-8 P/N: 2090036 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
220-240 VAC, 50/60 Hz, 1Ø
Nominal Size: 1.2 meter
External Dimensions (W x D x H)
Fume Hood unit only: 1220 x 900 x 1400 mm
With Exhaust Collar: 1220 x 900 x 1460 mm
With Fully-opened Sash: 1220 x 900 x 1603 mm
Internal Dimensions (W x D x H): 996 x 689 x 1230 mm
Exhaust Outlet Diameter and Material: 254 mm (10”), PVC Pipe
Number of Exhaust Collars: 1
Fluorescent Lamp Intensity: 915 lux
Construction:
Main Body: Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating
Internal Liner: Polypropylene
Sash Specification:
Sash Material: Polycarbonate
Sash Configuration: Vertical
Sloping: 5°
Maximum Sash Opening: 640 mm
Electrical:
Cabinet Full Load Amps (FLA): 32 A
Cabinet Nominal Power: 100 W (lighting only)
