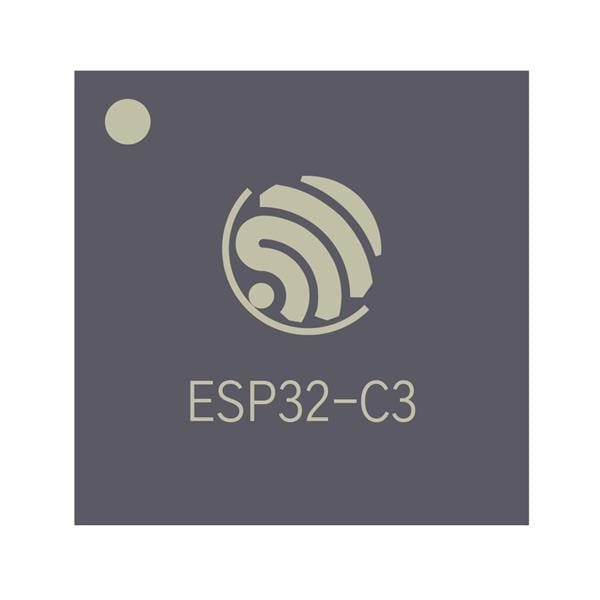

Espressif Systems ESP32-C3 BLE 5.0, Wi-Fi SMD IC ESP32-C3, single-core MCU, 2.4G Wi-Fi & BLE 5.0 combo, QFN 32-pin, 5*5 mm
Manufacturer: Espressif Systems Model: ESP32-C3 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Core: RISC-V
Width: 5 mm
Height: 0.85 mm
Length: 5 mm
Technology: Si
Sensitivity: - 105 dBm
Output Power: 18 dBm
Data RAM Size: 400 kB
Data RAM Type: SRAM
ADC Resolution: 12 bit
Data Bus Width: 32 bit
Interface Type: GPIO, I2C, I2S, SPI, UART
Mounting Style: SMD/SMT
Maximum Data Rate: 150 Mbps
Moisture Sensitive: Yes
Operating Frequency: 2.4 GHz
Program Memory Size: 384 kB
Program Memory Type: Flash
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 3 V
Number of ADC Channels: 6 Channel
Maximum Clock Frequency: 160 MHz
Supply Current Receiving: 87 mA
Supply Current Transmitting: 325 mA
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
