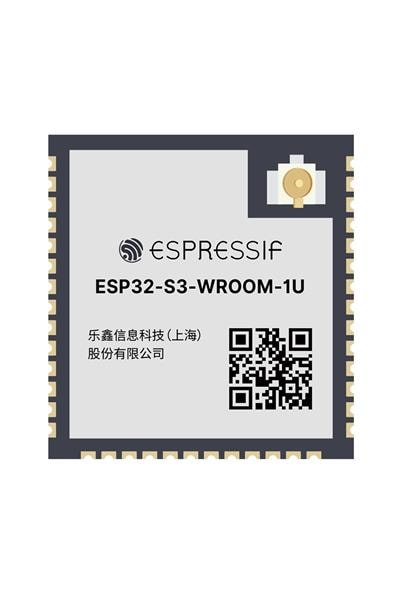

Espressif Systems ESP32-S3-WROOM-1U-N4 Multiprotocol Modules SMD module, ESP32-S3, 4 MB SPI flash, IPEX antenna connector
Manufacturer: Espressif Systems Model: ESP32-S3-WROOM-1U-N4 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Data Rate: 150 Mb/s
Frequency: 2.4 GHz
Dimensions: 19.2 mm x 18 mm x 3.2 mm
Output Power: 20.5 dBm
Interface Type: GPIO, I2C, I2S, SPI, UART
Moisture Sensitive: Yes
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 3 V
Antenna Connector Type: PCB
Operating Supply Voltage: 3 V to 3.6 V
Protocol - WiFi - 802.11: 802.11 b/g/n
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.0
