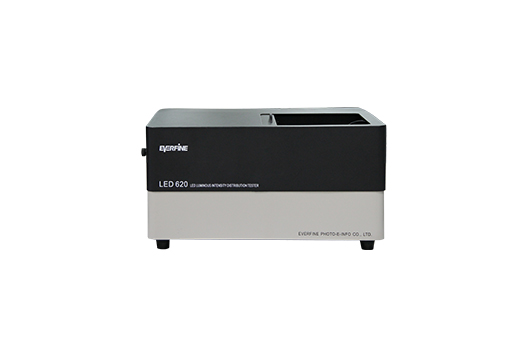

EVERFINE LED620 Goniophotometer (0lm-200lm, 1.000mA～2000.0mA)
Manufacturer: EVERFINE Model: LED620 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Photometer head: CLASS 1, 1cm2 acceptance area
Luminous intensity range: 10mcd~200cd
Precise LED orientation and alignment design
Automatic rotation of LEDs around vertical axis (γ)(automatic): ±10º ~ ±90º
and horizontal axis (C)(manual): 0°～360°
Scanning interval of angle: 0.1°、0.2°、0.5°、1° selectable
Accuracy of angle: ±0.05º
Luminous flux range:0lm-200lm
Forward current IF: 1.000mA～2000.0mA
Forward voltage VF: 0.001V～15.000V
Reverse leakage current IR: 0.01μA～100.00μA
Reverse voltage VR: 0.01V～10V
Accuracy of electrical parameters: ±0.2%F.S.
Warm-up time: 0ms-9999ms
