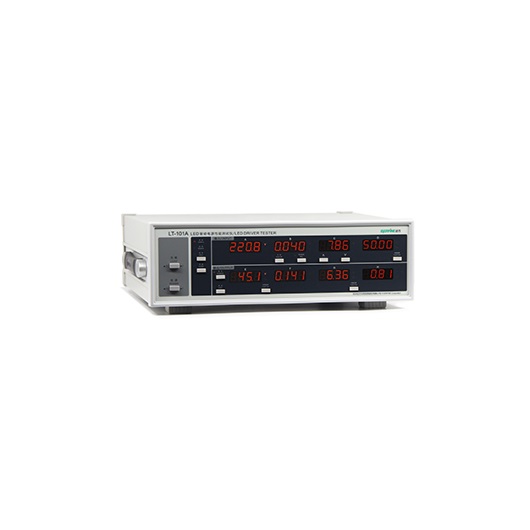

EVERFINE LT-101A LED Driver Tester
Manufacturer: EVERFINE Model: LT-101A Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Measurement function: Measure voltage RMS,current RMS,active power,power factor,frequency,voltage & current total harmonic distortion,true RMS and relative value of 0~50th harmonics.
Selection of input current bandwidth: narrowband (20Hz ~ 5kHz), wideband (20Hz ~ 1MHz)
Harmonic analysis function: THD and 2nd~50th harmonics
Input characteristic measurement range
Voltage: 3V~300V
Current: 0.010A~5.000A
Frequency: DC,20Hz~65Hz
Bandwidth: Narrow band is 5 kHz，wide band is 1MHz
Accuracy: ±(0.1％F.S.＋0.1％R.D.)
