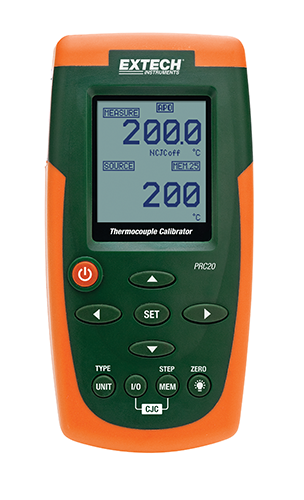

EXTECH PRC20 Thermocouple Calibrator
Manufacturer: EXTECH Model: PRC20 Origin: Taiwan - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
- Thermocouple:
+ Type J: -58 to 1832°F (-50 to 1000°C) /0.05% rdg ±1°
+ Type K: -58 to 2498°F (-50 to 1370°C) /0.05% rdg ±1°
+ Type T: -184 to 752°F (-120 to 400°C) /0.05% rdg ±1°
+ Type E: -58 to 1382°F (-50 to 750°C) /0.05% rdg ±1°
+ Type C: 32 to 3182°F (0 to 1750°C) /0.05% rdg ±1°
+ Type R/S: 32 to 3182°F (0 to 1750°C) /0.05% rdg ±1°
+ Type N: -58 to 2372°F (-50 to 1300°C) /0.05% rdg ±1°
- Voltage: -10.00mV to +60.00mV /10μV ±1d
- Resolution: 0.1° (up to 999.9) or 1° (over 999.9°) for J, K, T, E ; 1° for R, N; 0.5° for C, S
- Input Impedance: 10 MΩ
- Sampling Time: 4 times/second
Meter Dims (LxWxH): 6.3" x 3.2" x 1.7" (159 x 80 x 44mm)
Meter Wt: 8oz (225g) - not including battery weight
Complete with Thermocouple calibration cable with subminiature connectors, standard calibration cable with subminiature connectors, 100V-240V AC Universal Adaptor with 4 plugs, 6 x 1.5V AA
batteries, and hard carrying case
PRC20: Thermocouple Calibrator
Precision Multi-Thermocouple Source/Measure Calibrator
Features:
- Source and measure 8 thermocouple type devices (J, K, T, E, C, R, S and N)
- CJC - Cold Junction Compensation function
- Up to five user adjustable calibration presets
- Palm-sized double molded housing and large dot-matrix digital backlit LCD with thermocouple type indication
- High accuracy calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters, controllers or recorders
- Displays output in terms of millivolts or temperature based on thermocouple tables
- Mini thermocouple connector
- Large battery bank for extended work cycle
- External power adapter for continuous work cycle
- Complete with calibration cables, 100V-240V AC universal adaptor with 4 plugs, 6 AA batteries, and hard carrying case
