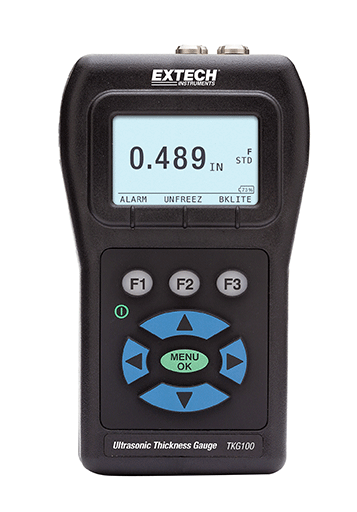

EXTECH TKG100 Digital Ultrasonic Thickness Gauge
Manufacturer: EXTECH Model: TKG100 Origin: USA - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
- Thickness Range (in Steel):
+ 5MHz probe 0.040 to 20" (1.0 to 508mm);
+ 10MHz probe: 0.020 to 20” (0.50 to 508mm) Option
- Languages:English, French, Spanish, Italian, Czech, German, Portuguese, Slovak, Finnish, and Hungarian
- Hold Mode Holds display to retain last thickness reading with reverse video display
- Freeze Mode Freezes display (ideal for high temperature readings)
- Fast Min/Max Mode Displays min or max and actual thickness value at 20 measurements/sec
Units Inches/Millimeters/Microseconds
- Alarms Min/Max depth, beeps and display flashes as well as keypad illumination; vibrate
- Illuminating Keypad F1 = Red, F2 = Yellow, F3 = Green for easy, go/no-go testing
Battery Life: up to 50h
Complete with 2oz bottle of couplant, 2 AA batteries, 5MHz Transducer, and hard carrying case
TKG100: Digital Ultrasonic Thickness Gauge
Compact rugged meter for non-destructive thickness measurements
Features:
- Wide measurement range:
- 5MHz probe: 0.040" to 20" of steel
- 10MHz probe: 0.020” to 20" of steel (optional)
- Sunlight readable dot-matrix display with backlight
- Multiple transducer options for high temperature and difficult to measure materials
- Fast minimum feature to capture minimum thicknesses
- Complete with 2oz bottle of couplant, 2 AA batteries, 5MHz Transducer, and hard carrying case
