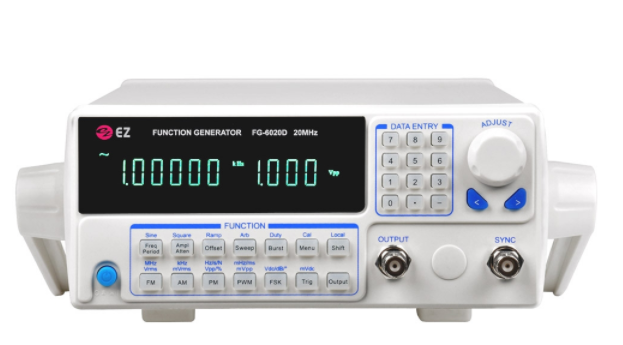

EZ DIGITAL FG-6020D Pulse Generator (20MHz)
Manufacturer: EZ DIGITAL Model: FG-6020D Origin: Korea - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Frequency range:
- Sine: 10μHz ~ 20MHz
- Square: 5MHz
Others: 1MHz
Resolution: 10μHz
Accuracy: ± 50ppm
Waveform: 16 waveforms (Sine, Square, Ramp, Pos-pulse, Neg-pulse, Stair, Noise, Half sine, Limit sine,
Exponent, Logarithm, Tangent, Sin (x) / x, Half round, Cardiac, Quake)
Wave length: 1,024 points
Sampling rate: 100MSa / s
Resolution: 8 bits
Harmonic distortion (Sine): ≤-40dBc (≤5MHz), ≤-35dBc (> 5MHz)
Amplitude:
Frequency≤8MHz): 0 ~ 10Vpp (50Ω), 0 ~ 20Vpp (Open circuit)
Frequency> 8MHz): 0 ~ 9Vpp (50Ω), 0 ~ 18Vpp (Open circuit)
DC Offsetf: ± 5Vdc (50Ωl), ± 10Vdc (Open circuit)
Modulation mode: FM, AM, PM, PWM
Power supply: AC 100 ~ 240V, 45 ~ 65Hz, <20W
Display: VFD display
Size and mass: 256 × 101 × 318mm, Approx. 1.5Kg
Accessories: BNC Cable * 1, Manual * 1, Power cable * 1, Software CD * 1, USB cable * 1
