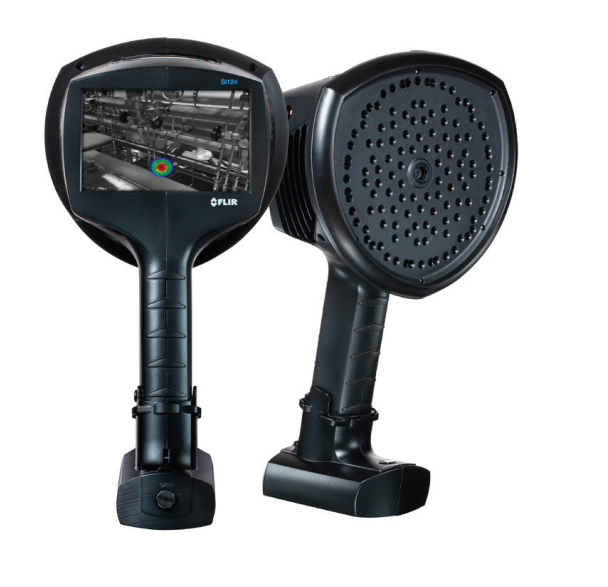

FLIR FLIR Si124-LD Industrial Acoustic Imaging Camera for Compressed Air Leak Detection (2 kHz ~ 65 kHz, 800x480)
Manufacturer: FLIR Model: FLIR Si124-LD - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Acoustic measurement: 124 low-noise MEMS microphones, real-time sound visualization
Dynamic range, low limit: <-15 dB (frequency-dependent)
Dynamic range, high limit: >120 dB (frequency-dependent)
Bandwidth: 2 kHz to 65 kHz, adjustable range
Distance: From 0.3 m (1 ft) up to 130 m (430 ft)
Leak detection and quantification: Automatic leak recognition including estimated leak size and annual cost
Leak rate
In typical industrial environment:
>0,032 l/min @ 3 bar from 3 m (9.8 ft)
>0,05 l/min @ 3 bar from 10 m (32.8 ft)
Absolute minimum detection in quiet environment:
0.016 l/min @ 1.2 bar from 0.3 m (1 ft)
