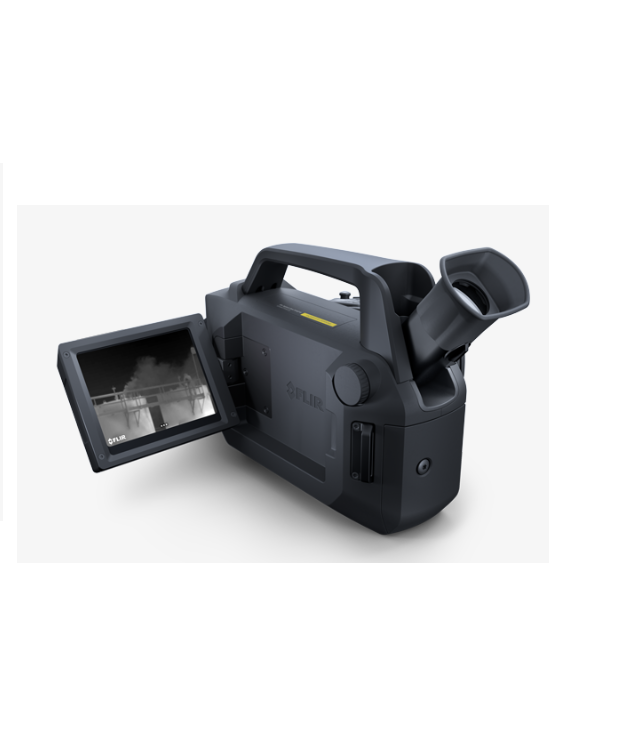

FLIR Gx320 14.5° Optical Gas Imaging (OGI) Cameras for Hydrocarbons (-20°C ~ 350°C, 76,800 pixels, 14.5° × 10.8°)
Manufacturer: FLIR Model: Gx320 14.5° P/N: 10401-0101 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
IR Resolution: 320 × 240 thermal resolution (76,800 pixels)
Detector Pitch: 30 μm
Accuracy: ±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F)
Spectral Range: 3.2 µm to 3.4 µm
Hazardous Location Compliance: ATEX/IECEx, Ex ic nC op is IIC T4 Gc II 3 G
ANSI/ISA-12.12.01-2013, Class I Division 2
CSA 22.2 No. 213, Class I Division 2
Imaging & Optical
Adjustable Viewfinder: Built-in, tiltable OLED, 800 × 480 pixels
Camera f-number: 1.59
Color LCD: 4", 640 × 480 pixel rotatable, touchscreen LCD
Color Palettes: Arctic, White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC
Detector Pitch: 30 μm
Detector Type: Focal plane array (FPA), cooled InSb
Display Frame Rate: 60 Hz
Field of View: 14.5° × 10.8° (38 mm)
Focus: Manual
Image Analysis: 10 spots, 5 boxes with max/min/average, 1 line (horizontal or vertical), measurement corrections
Image Modes: IR image, visual image, high sensitivity mode (HSM), noise reduction filter
IR Resolution: 320 × 240 thermal resolution (76,800 pixels)
Laser Spot: Yes
MPEG Video Recording: Yes
Non-Radiometric IR Video: H.264 (AVC) over RTSP (Wi-Fi), MPEG4 over RTSP (Wi-Fi), MJPEG over UVC and RTSP (Wi-Fi)
On Camera Display: Widescreen 800 × 480 pixel LCD, Tiltable 800 × 480 pixel OLED viewfinder
Radiometric IR Video: RTRR (.csq), Over UVC
Radiometric JPG: Yes
Sensor Cooling: Stirling Microcooler (FLIR MC-3)
Spectral Range: 3.2 µm to 3.4 µm
Video Recording & Streaming: H.264 to memory card
Zoom: 1 – 8× continuous, digital zoom
Measurement & Analysis
Accuracy: ±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F)
Area Box: 5 (min./max./avg.)
Delta T: Yes
Gas Quantification: Quantification onboard camera
Gas Sensitivity: CH₄: <9.6 ppm x m; Hydrocarbons (multiple): <4 ppm x m; (ΔT = 10°C, Distance = 1 m)
Measurement Corrections: Reflected temperature, distance, atmospheric transmission, humidity, external optics
Profile: 1 live line (horiz. or vert.)
Recording: MultiREC Recording; Record multiple files automatically in customizable order
Spot Meter: 10
Temperature Range: -20°C to 350°C (-4°F to 662°F)
Available sub ranges:
-20°C to 10°C (-4°F to 50°F)
-10°C to 25°C (14°F to 77°F)
10°C to 50°C (50°F to 122°F)
40°C to 85°C (104°F to 185°F)
70°C to 120°C (158°F to 248°F)
100°C to 160°C (212°F to 320°F)
130°C to 200°C (266°F to 392°F)
180°C to 260°C (356°F to 500°F)
240°C to 350°C (464°F to 662°F)
Thermal Sensitivity: <10 mK at 30°C (86°F)
Communication & Data Storage
Communication Interfaces: USB 2.0, Bluetooth via headset, Wi-Fi, HDMI
Image File Format: Standard JPEG, measurement data included. Infrared-only mode
Radio: Operating frequency:
•Bluetooth + EDR: 2402–2480 MHz
•WLAN 2.4 GHz: 2412–2462 MHz
•WLAN 5 GHz: 5150-5250 MHz Note that frequency band 5150-5250 MHz is for indoor use only, see national regulations.
RF output (EIRP)
• Bluetooth + EDR: <10 dBm
•WLAN: <17 dBm
Antenna
•Integrated PIFA antenna (gain: maximum 2.6 dBi)
Storage Media: Removable SD card
Video Out: HDMI 640 × 480, HDMI 1280 × 720, DVI 640 × 480, DVI 800 × 600
General
Annotations: Voice: 60 seconds with Bluetooth on still images and video
Text: Text from predefined list or soft keyboard on touchscreen
Image Sketch: Yes, on infrared only
Cloud Services: Via Wi-Fi; FLIR Ignite for direct, secure image uploading, organizing, storage, and sharing (required firmware available)
FLIR Inspection Route: Enabled in the camera
GPS [removable]: Location data automatically added to every still image and first frame in video from built-in GPS
Laser Pointer: Class 2
Size [L x W x H ] w Lens: 251.6 mm × 164.5 mm × 170.9 mm (9.9 in × 6.48 in × 6.73 in)
Weight [incl lens & batteries]: 3 kg (6.18 lb)
User Interface
Languages: 21
Power
Battery operating time: >2.5 hours at 25°C (68°F) and typical use
Battery Type: Rechargeable Li-ion battery; 7.4 V, charged in camera or separate 2-bay charger
Charging Time: 2.5 hours to 95% capacity, charging status indicated by LEDs
Start Up Time: Typically 7 min. at 25°C (77°F)
Mounting: UNC ¼"-20
Operating Temperature Range: -20°C to 50°C (-4°F to 122°F)
Shock & Vibration: Shock: 25 g (IEC 60068-2-27); Vibration: 2 g (IEC 60068-2-6)
Storage Temperature Range: -30°C to 60°C (-22°F to 140°F)
