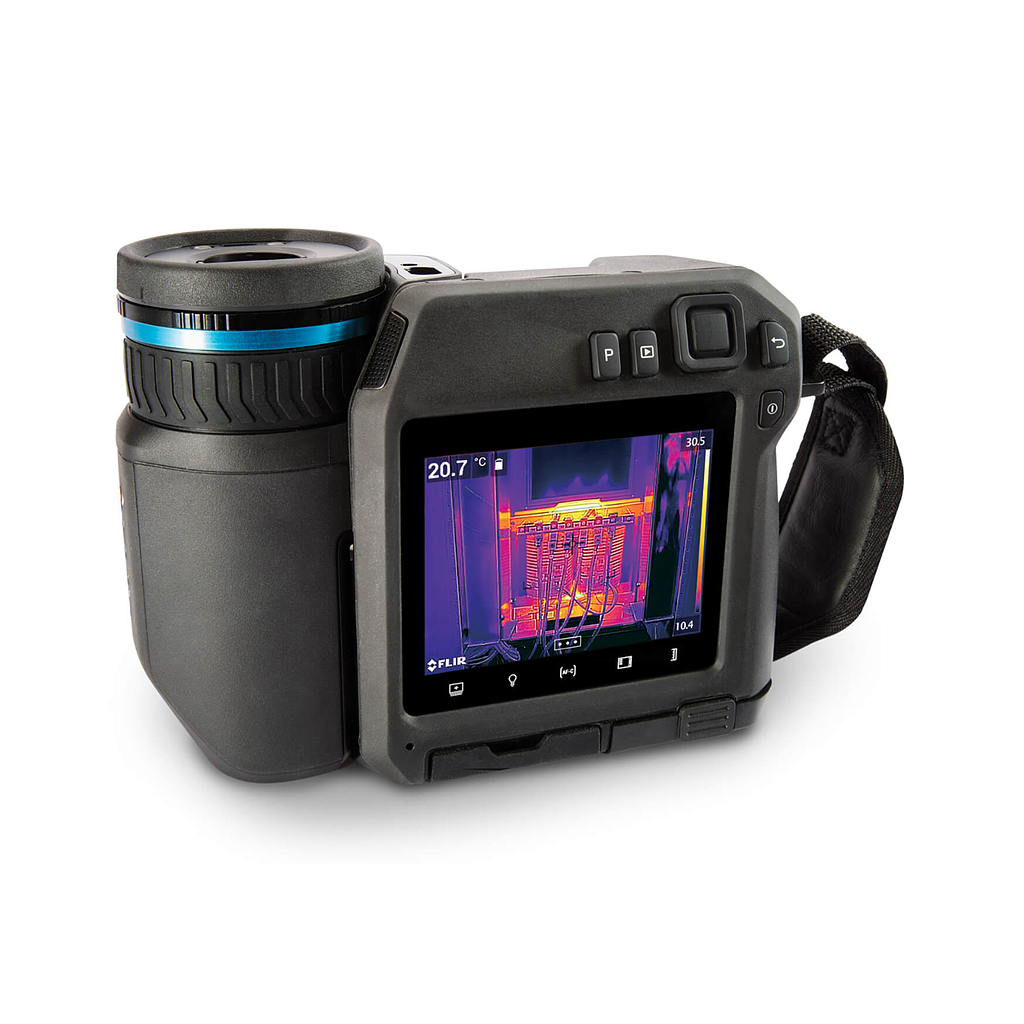

FLIR T560 24°, 14°+42° Professional Thermal Camera (-20°C~1500°C; 7.5 - 14 µm)

Thermal Sensitivity/NETD: <50 mK @ 30°C/86°F (14° lens), <40 mK @ 30°C/86°F (24° lens), <30 mK @ 30°C/86°F (42° lens)

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Digital Camera: 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use

Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation

Storage Media: Removable SD card

IMAGING & OPTICAL

Camera software update: Using USB cable or SD card

Color: Black

Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

Detector Resolution: 640 × 480

Detector Type and Pitch: Uncooled microbolometer, 12 µm

Digital Camera: 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use

Digital camera FOV: 53° × 41°

Digital Zoom: 1–8× continuous

Field of view (FOV): 14° × 10°, 24° × 18°, 42° × 32°

f-number: 1.5 (14° lens), 1.3 (24° lens), 1.1 (42° lens)

Focal Length: 29 mm/1.41 in (14° lens), 17 mm/0.67 in (24° lens), 10 mm/0.39 in (42° lens)

Focus: Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual

Frame Rate [Full Window]: 30 Hz

Minimum Focus Distance with MSX: 1.0 m/3.28 ft (14° lens), 0.5 m/1.64 ft (24° lens), 0.65 m/2.13 ft (42° lens)

Minimum Focus Distance: 1.0 m/3.28 ft (14° lens), 0.15 m/0.49 ft (24° lens), 0.15 m/0.49 ft (42° lens)

Picture-in-Picture: Resizable and movable

Spatial resolution (IFOV): 0. 4 mrad/pixel (14° lens), 0.7 mrad/pixel (24° lens), 1.2 mrad/pixel (42° lens)

Spectral Range: 7.5 - 14 µm

MEASUREMENT & ANALYSIS

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Object Temperature Range: -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)

USER INTERFACE

Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation

Display Technology: IPS

Touch Screen: Optically bonded PCAP

Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

POWER

Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use

Battery Type: Li-ion battery, charged in camera or on separate charger

Battery voltage: 3.6 V

Battery weight: 195 g (6.89 oz)

Charging system: In camera (AC adapter or 12 V from a vehicle) or two-bay charger

Charging Temperature: 0°C to 45°C (32°F to 113°F)

External Power Operation: AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)

Power Management: Automatic shut-down and sleep mode

Operating Temperature Range: -15°C to 50°C (5°F to 122°F)

Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)

Packaging Size: 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in)

Size (L x W x H): Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in)

Weight [battery included]: 1.4 kg (3.1 lb)
