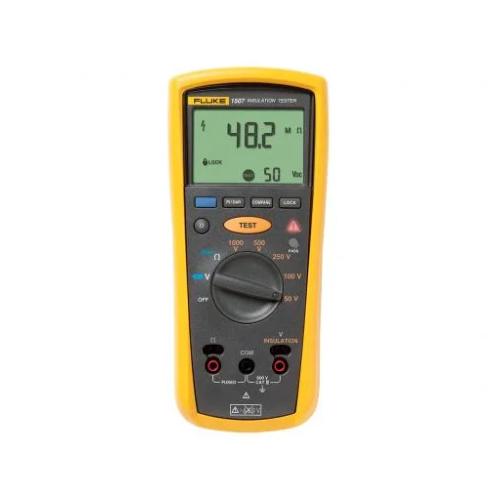

FLUKE Fluke 1507 CAL Insulation Resistance Tester (1000 V)
Manufacturer: FLUKE Model: Fluke 1507 CAL P/N: 5160560 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
- AC/DC Voltage Measurement
+ 600.0 V /0.1 V /± 2 % + 3dgt
- Earth bond resistance measurement
+ 20.00 Ω, 200.0 Ω, 2000 Ω, 20.00 kΩ /± 1.5 % + 3 dgt
- Insulation specifications
+ Measurement Range: 10.01 MΩ to 10 GΩ
+ Test voltage: 50 V, 100 V, 250 V, 500 V, 1000 V /+ 20 %
+ Measure Accuracy: 50 V: ±(3 % + 5)
100 V: ±(3 % + 5)
250 V: ±(1.5 % + 5)
500 V: ±(1.5 % + 5)
1000 V:±(1.5 % + 5) to 2000 MΩ, ±(10 % + 3) above 2000 MΩ
Size: 5.0 cm H x 10.0 cm W x 20.3 cm L
Weight: 550 g (1.2 lb)
IP Rating: IP40
Includes:
Remote probe
Test leads
Test probes
Alligator clips
User documentation
