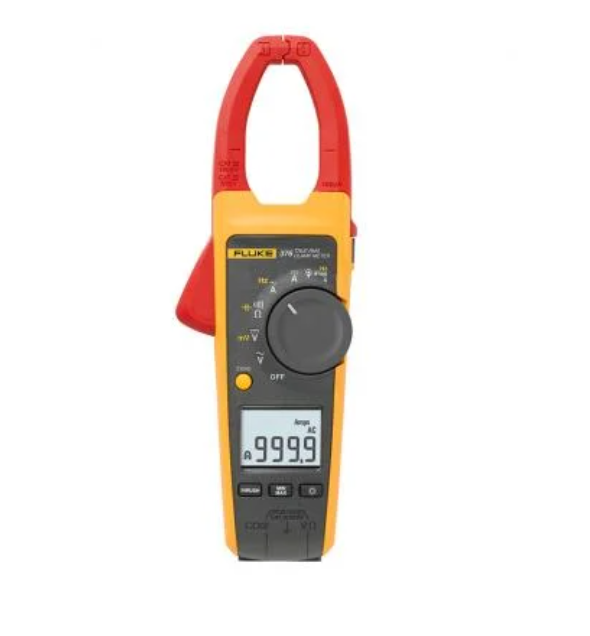

FLUKE FLUKE-376 FC True-RMS Clamp Meter (1000A AC/DC TRMS with 18-inch iFlex 2500 A)

General Specifications

AC Current via Jaw

Range: 999.9 A

Resolution: 0.1 A

Accuracy:

2% ±5 digits (10 Hz to 100 Hz)

2.5% ±5 digits (100-500 Hz)

Crest Factor (50 Hz/60 Hz):

3 @ 500 A

2.5 @ 600 A

Add 2% for C.F. >2

AC Current via Flexible Current Probe

Range: 2500 A

Resolution:

0.1 A (≤ 600 A)

1 A (≤ 2500 A)

Accuracy: 3% ±5 digits (5 – 500 Hz)

Crest Factor (50/60Hz):

3.0 at 1100 A

2.5 at 1400 A

1.42 at 2500 A

Add 2% for C.F. > 2

DC Current

Range: 999.9 A

Resolution: 0.1 A

Accuracy: 2% ±5 digits

AC Voltage

Range: 1000 V

Resolution:

0.1 V (≤600.0 V)

1 V (≤1000 V)

Accuracy: 1% ±5 digits (20 Hz to 500 Hz)

DC Voltage

Range: 1000 V

Resolution:

0.1 V (≤600.0 V)

1 V (≤1000 V)

Accuracy: 1% ±5 digits

mV dc

Range: 500.0 mV

Resolution: 0.1 mV

Accuracy: 1% ±5 digits

Frequency via Jaw

Range: 5.0 Hz to 500.0 Hz

Resolution: 0.1 Hz

Accuracy: 0.5% ±5 digits

Trigger level:

5 Hz to 10 Hz, ≥10 A

10 Hz to 100 Hz, ≥5 A

100 Hz to 500 Hz, ≥10 A

Frequency via Flexible Current Probe

Range: 5.0 Hz to 500.0 Hz

Resolution: 0.1 Hz

Accuracy: 0.5% ±5 digits

Trigger level

5 Hz to 20 Hz, ≥25 A

20 Hz to 100 Hz, ≥20 A

100 Hz to 500 Hz, ≥25 A

Resistance

Range: 60 kΩ

Resolution:

0.1 Ω (≤600 Ω)

1 Ω (≤6000 Ω)

10 Ω (≤60 kΩ)

Accuracy: 1% ±5 digits

Capacitance

Range: 1000 μF

Resolution:

0.1 μF (≤ 100 μF)

1 μ F (≤ 1000 μF)

Accuracy: 1% ±4 digits

Mechanical Specifications

Maximum voltage between any terminal and earth ground: 1000 V

Batteries 2 AA, NEDA 15A, IEC LR6

Operating temperature: -10 °C to +50 °C

Storage temperature: -40 °C to +60 °C

Operating humidity -non-condensing (< 10°C):

≤90% RH (at 10 °C to 30 °C)

≤75% RH (at 30 °C to 40 °C)

≤45% RH (at 40 °C to 50 °C)

Operating altitude: 2000 m

Storage altitude: 12,000 m

Size (L x W x H): 249 x 85 x 45 mm

Weight: 395 g

Jaw opening: 34 mm

IP rating IEC 60529: IP30, non-operating

Includes:

Fluke 376 FC True-RMS Clamp Meter

18-inch iFlex® Flexible Current Probe

TPAK magnetic hanging strap

TL75 Test Leads

Two AA batteries (Installed)

Soft carrying case

Coated instruction card

Safety information sheet
