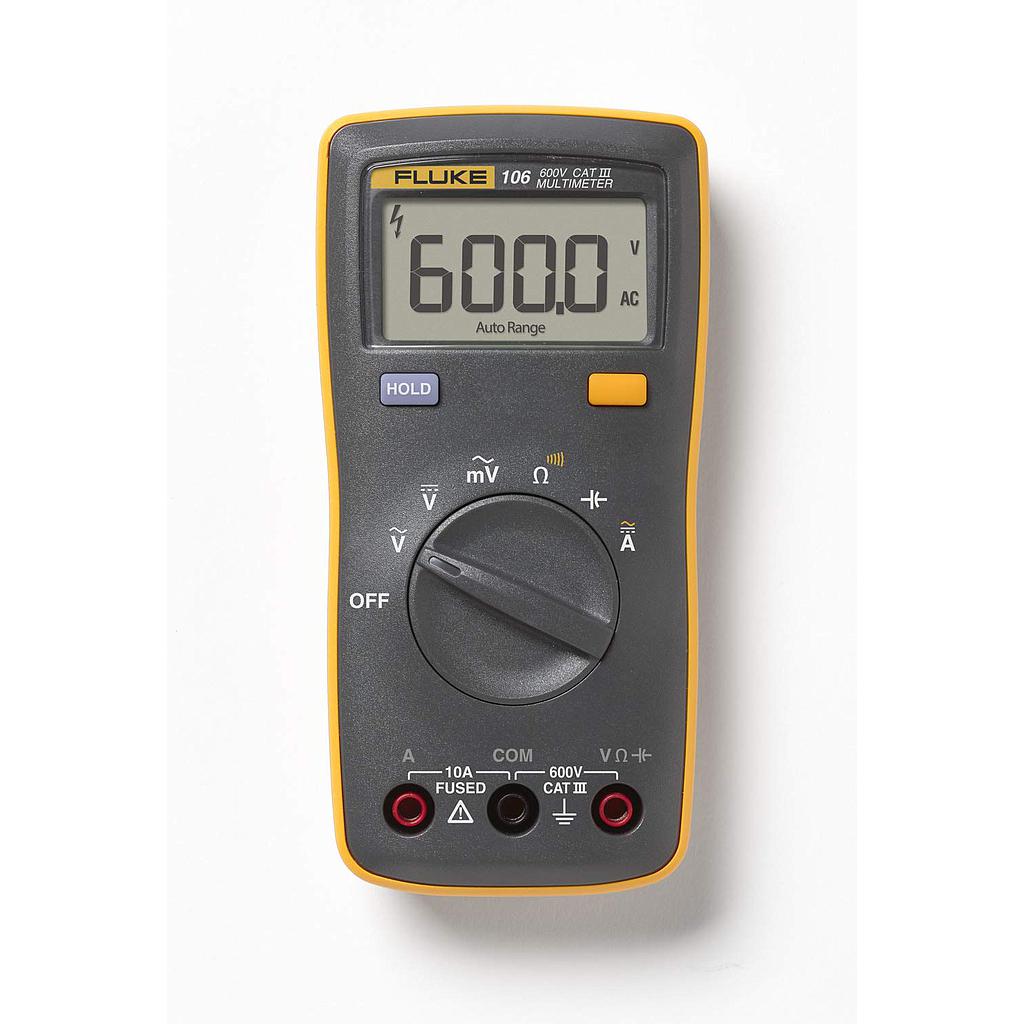

FLUKE 106 Digital Multimeter

Manufacturer: FLUKE
Model: 106
Origin: China
Guarantee: 12 Month
Contact
In stock: 4 Unit
- Request a Quotation
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636

Dong Nai: 0932.160.940

Specifications
Manufacturer Info

ACV: 6.000 V, 60.00 V, 600.0 V /1.0%

DCV: 6.000 V, 60.00 V, 600.0 V /0.5%

AC mV: 600.0 mV /3.0 %

Diode Test: yes

R: 400.0 Ω, 4.000 kΩ, 40.00 kΩ, 400.0 kΩ, 4.000 MΩ,40.00 MΩ /0.5%

C: 50.00 nF, 500.0 nF, 5.000 μF, 50.00 μF, 500.0 μF, 1000 μF

F: 50.00 Hz, 500.0 Hz, 5.000 kHz, 50.00 kHz,100.0 kHz

ACA: 4.000 A, 10.00 A /1.5 %

DCA: 4.000 A, 10.00 A /1.5 %

Battery : 2 AAA

Size (HxWxL: 142 mm x 69 mm x 28mm

Weight: 200 g

Manufacturer: Fluke

Made in China

Details

Accuracy Specifications
Function		Range	Resolution	Accuracy
AC Volts¹		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	1.0 % + 3
DC Volts		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	0.5 % + 3
AC Millivolts		600.0 mV	0.1 mV	3.0 % + 3
Diode Test²		2.000 V	0.001 V	10 %
Resistance (Ohms)		400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3
Capacitance³		50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Frequency⁴ Hz (10 Hz – 100 kHz)		50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	NA
Duty Cycle⁴		1 % to 99 %	0.1 %	NA
AC Current (40 Hz to 200 Hz)		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
DC Current		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified. Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 ma="" li=""> Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 50 nF range). All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
Function	Overload Protection	Input Impedance (Nominal)	Common Mode Rejection Ratio	Normal Mode Rejection Ratio
AC Volts	600 V ¹	>10 MΩ <100 pf="" sup="">2	>60 dB at dc, 50 Hz or 60 Hz	−
AC Millivolts	600 mV	>1M, <100 pf="" td="">	>80 dB at 50 Hz or 60 Hz	−
DC Volts	600 V ¹	>10 MΩ <100 pf="" td="">	>100 dB at dc, 50 Hz or 60 Hz	>60 dB at 50 Hz or 60 Hz
6 x 105 V Hz Max For mV (AC), input impedance is approximately 1 MΩ.
General Specifications
Maximum Voltage Between any Terminal and Earth Ground	600 V
Display (LCD)	6000 counts, updates 3/sec
Battery Type	2 AAA, NEDA 24A, IEC LR03
Battery Life	200 hours minimum
Temperature
Operating	0 °C to 40 °C
Storage	-30 °C to 60 °C
Relative Humidity
Operating Humidity	Non-condensing when <10°C ≤90 % at 10 °C to 30 °C; ≤75 % at 30 °C to 40 °C
Operating Humidity, 40 MΩ Range	≤80 % at 10 °C to 30 °C; ≤70 % at 30 °C to 40 °C
Altitude
Operating	2000 m
Storage	12,000 m
Temperature Coefficient	0.1 X (specified accuracy) /°C (<18 c="" or="">28 °C)
Fuse Protection for Current Inputs	11A, 1000V Fast Fuse, Fluke specified part only
Size (HxWxL)	142 mm x 69 mm x 28mm
Weight	200 g
IP Rating	IEC 60529: IP 40
Safety	IEC 61010-1: 600 V CAT III, Pollution Degree 2
Electromagnetic Environment	IEC 61326-1: Portable
Electromagnetic Compatibility	Applies to use the Korea only. Class A Equipment (Industrial Broadcasting and Communication Equipment)¹
This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
