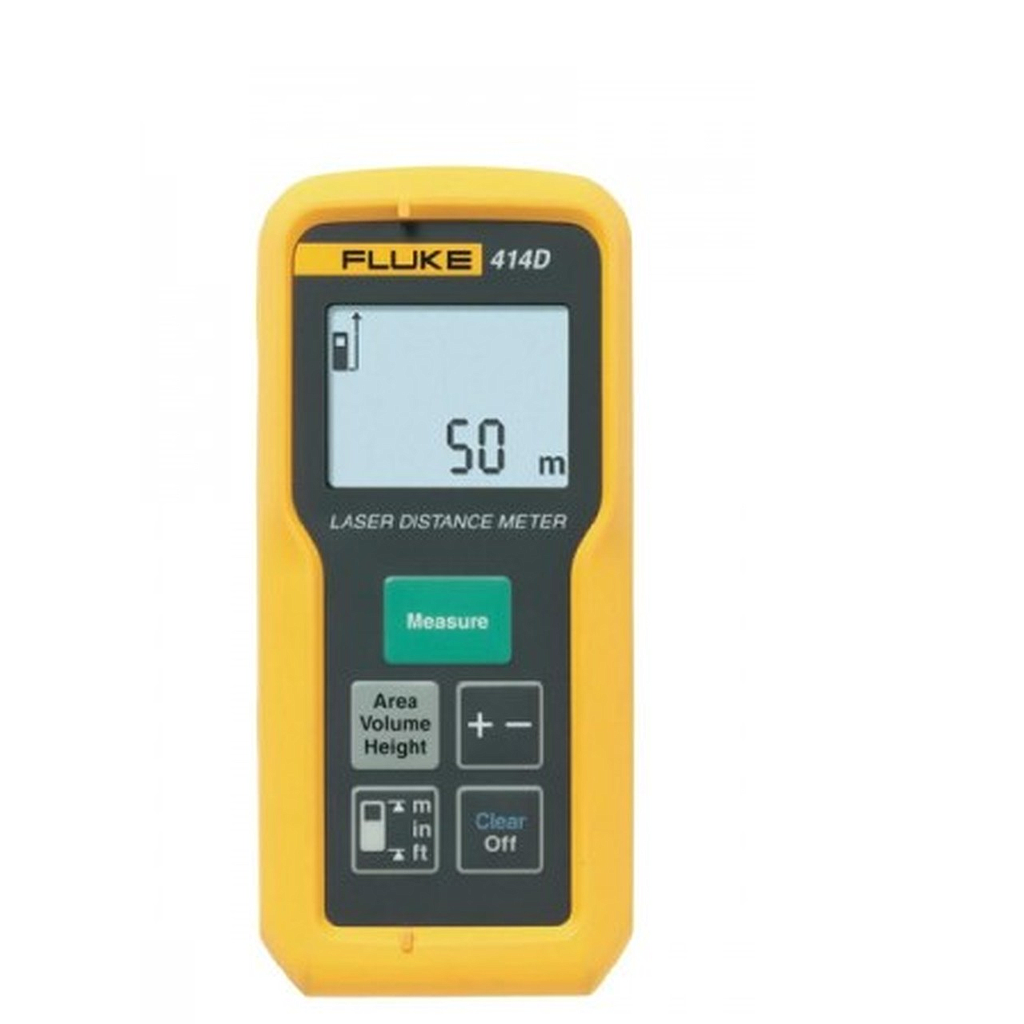

FLUKE 414D Laser rangefinder

414D

419D

424D

Distance Measurement

Typical Measuring Tolerance[1]

± 2.0 mm [3]

± 1.0 mm [3]

Maximum Measuring Tolerance[2]

± 3.0 mm [3]

± 2.0 mm [3]

Range at Leica target plate GZM26

50 m / 165 ft

80 m / 260 ft

100 m / 330 ft

Typical Range[1]

40 m / 130 ft

80 m  / 260 ft

80 m / 260 ft

Range at unfavorable condition[4]

35 m / 115 ft

60 m / 195 ft

60 m / 195 ft

Smallest unit displayed

1 mm / 1/16 in

6 /30 / 60 mm
(10 / 50 / 100 m)

∅ laser point at distances

6 /30 / 60 mm
(10 / 50 / 100 m)

6 /30 / 60 mm
(10 / 50 / 100 m)

Tilt measurement

Measuring tolerance to laser beam[5]

No

No

± 0.2°

Measuring tolerance to housing[5]

No

No

± 0.2°

Range

No

No

360°

General

Laser class

2

Laser type

635 nm, <1 mw="" span="">

Protection class

IP40

IP54

Automatic laser off

After 90 seconds

Automatic power off

after 180 seconds

Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03

Up to 3,000
measurements

Up to 5,000
measurements

Size (H X W X L)

116mm Length
53mm Width
33mm Depth

127mm Length
56mm Width
33mm Depth

127mm Length
56mm Width
33mm Depth

Weight (with batteries)

113 g

153 g

158 g

Temperature range: Storage Operation

-25 °C to +70°C
(-13 °F to +158 °F)

0 °C to +40 °C
(32 °F to +104 °F)

-25 °C to +70°C
(-13 °F to +158 °F)

-10 °C to +50 °C
(14 °F to +122 °F)

Calibration cycle

Not applicable

Not applicable

Tilt and compass

Maximum altitude

3000 m

3000 m

3000 m

Maximum relative humidity

85% at 20 °F to 120°F
(-7 °C to 50 °C)

85% at 20 °F to 120°F
(-7 °C to 50 °C)

85% at 20 °F to 120°F
(-7 °C to 50 °C)

Safety

IEC Standard No. 61010-1:2001
EN60825-1:2007 (Class II)

EMC

EN 55022:2010
EN 61000-4-3:2010
EN 61000-4-8:2010
