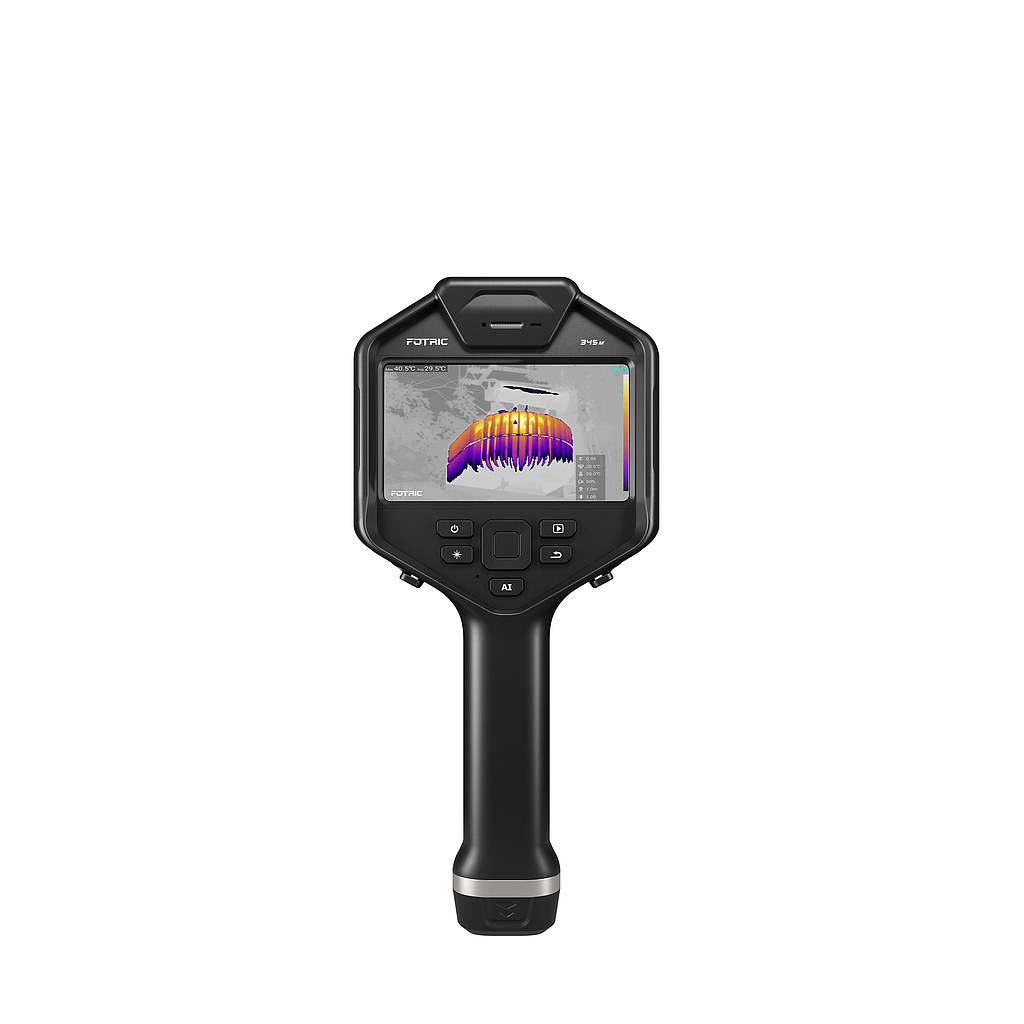

FOTRIC 345M-L25 Advanced AI Thermal Imager (1.36mrad; 320*240; -20℃~650℃)

Infrared Resolution: 320*240

Field of View（FOV）: 25°×19°

Super Resolution (SR): 640*480

Thermal Sensitivity（NETD): ＜0.05℃ at 30℃

Temperature Measurement Range: -20℃ to 150℃ (-4℉ to 302℉); 0℃ to 650℃(32℉ to 1202℉)

Accuracy: ± 2℃ or ± 2 %, whichever is greater（ambient temp between 15℃~35℃)

Detector Type: Uncooled infrared focal plane detector

Frame Rate: 30Hz

IFOV with Standard Lens (spatial resolution): 1.36mrad

Digital Zoom: 1x to 4x,Continuous adjustment of roller

Minimum Focus Distance: 0.1m

Focus Mode: Manual

Laser Measurement: -

Palettes: 2 MagicThermal palettes, 15 standard palettes, 15 Inverted palettes

Image File Formats: Standard JPEG with measurement data included

Video File Formats: Full radiation thermal image video in IRS format; standard MPEG4 non radiation video;

Batteries: (field-replaceable, rechargeable): 2 Lithium-ion rechargeable batteries (7.4V, 3500mAh)

Storage Memory: 32GB micro SD card

Battery Life: Over 4 hours per battery

Battery Charging Time: 2.5 hours to 90% full charge

Battery Charging System: Two-bay battery charger with LED display (12V, 3A)

Device Interface: Support USB Type-C 3.0, Micro HDMI and SD card

Size (H x W x L): 312.8mm×123.3mm×139.2mm

Weight (battery included): ＜1.0kg (lens not included)

Tripod: UNC ¼"-20 interface

Standard Configuration:

Infrared thermal imager, 25° Lens, lens cover, batteries, battery charger,

power adapter, USB type-C to USB interface cable,micro HDMI to HDMI interface cable, SD card, SD card reader,

accessory bag (wrist strap, 2 wrist strap holders, 2 M4 * 8 screws, lanyard, Allen wrench),

information bag (packing list,user manual, calibration certificate, certificate of QC, certificate of inspection, warranty card, USB),

portable soft bag, hard portable case.

Optional lens:

Telephoto：15°×11° (＜0.25m)

Wide-angle： 44°×34° (＜0.1m)
