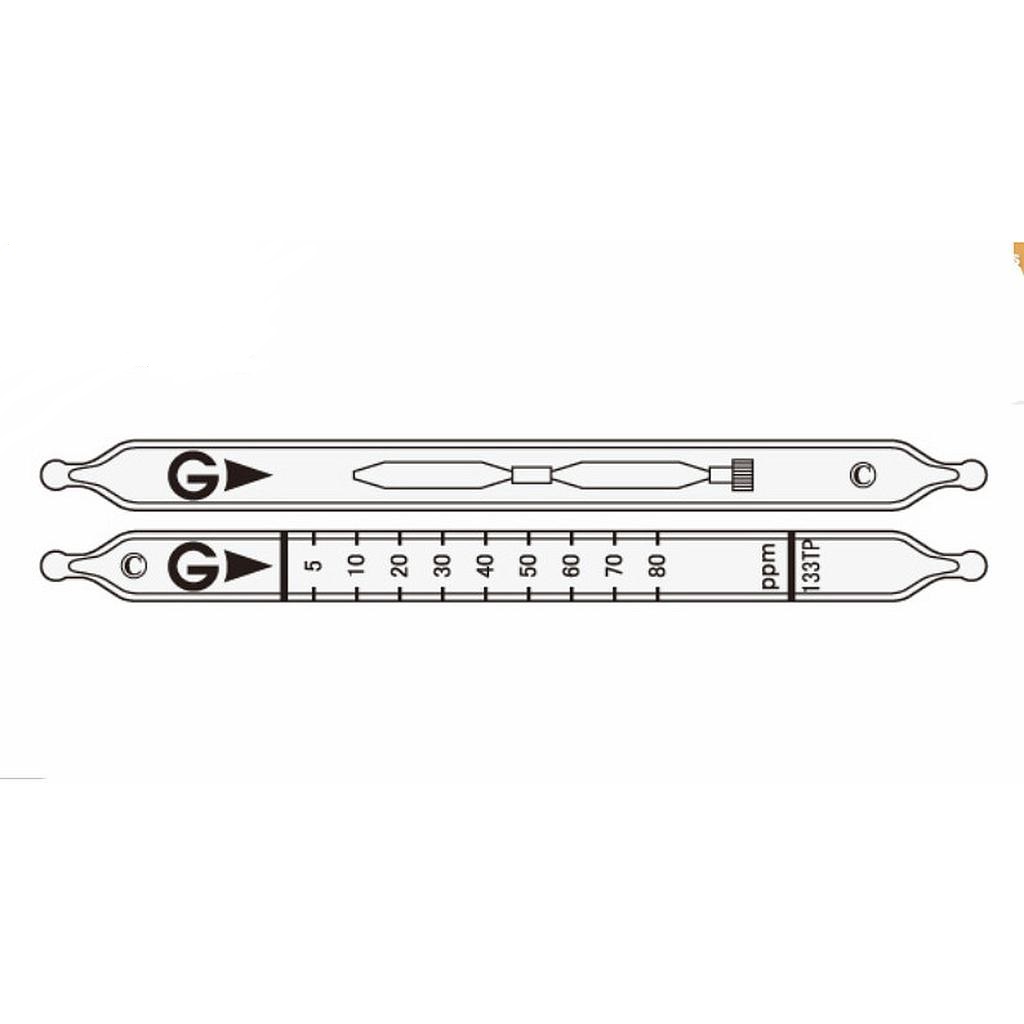

Gastec 133TP Detector tubes Gas or Vapour Tetrachloroethylene Cl2C:CCl2 (5 - 80 ppm )
Manufacturer: Gastec Model: 133TP - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Calibration Range: 5 - 80 ppm
Measuring Range: 5 - 80 ppm
Sampling (flow) Rate: 100mL/min
Sampling Volume: 1000mL
Sampling Time: 10 min
Colour Change: Yellow → Reddish purple
Nr. of tests: 5 tubes
Automatic Gas Sampler: GSP-300FT-2
Details
Specifications
| Calibration Range | 5 - 80 ppm |
| Measuring range | 5 - 80 ppm |
| Sampling (flow) Rate | 100mL/min |
| Sampling Volume | 1000mL |
| Sampling Time | 10min |
| Detecting Limit | 0.5ppm |
| Colour Change | Yellow → Reddish purple |
| Corrections for temperature/humidity | Necessary for 0 to 40ºC Unnecessary for R.H.5 to 90% |
| Shelf life | 2 years |
| Accuracy | CV=5-10% (CV: Coefficient of variation = σ: standard deviation / mean value x 100) |
Possibly coexisting substances and their interferences (NOTE)
| Substance(s) | Interference | Colour change by itself |
| Hydrogen chloride |  1/5 |
+ | Reddish purple |
| Chlorine | 1/20 |
 |
White |
| Vinyl chloride | 1/5 |
+ | Reddish purple |
| 1,2-Dichloroethylene | 1/5 |
+ | Reddish purple |
| Trichloroethylene | 1/5 |
+ | Reddish purple |
| 1,1,1-Trichloroethane |  800ppm |
No | No |
| Toluene,Xylene | 25ppm |
|
No |
| Calibration gas generation | Diffusion tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 25 ppm | 100 ppm | 10.8 to 54.5%(in oxygen) |
