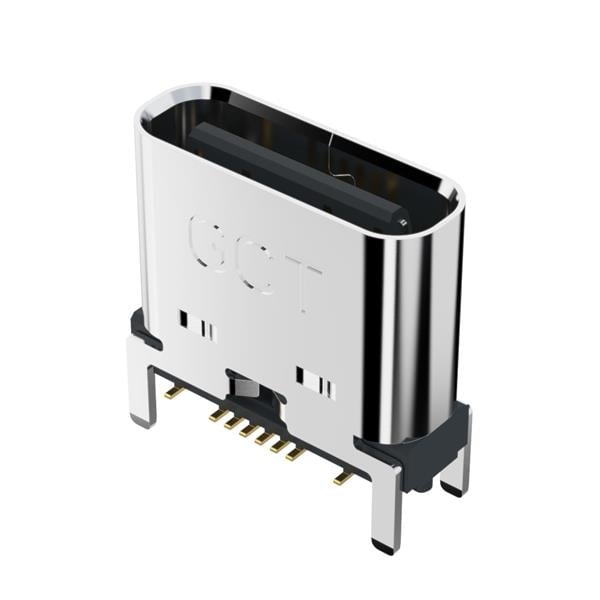

GCT (Global Connector Technology) USB4145-03-0170-C PCB Top Mount USB-C Rec 3u" Vert 16P SMT 1.7mm TH stakes H7.46mm T+R+Cap
Manufacturer: GCT (Global Connector Technology) Model: USB4145-03-0170-C - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Color: Black
Gender: Receptacle (Female)
Features: 20000 Mating Cycles
Standard: USB 2.0
Shell Plating: Nickel
Current Rating: 5 A
Mounting Angle: Vertical
Mounting Style: Top-Mount
Voltage Rating: 48 VDC
Contact Plating: Gold
Number of Ports: 1 Port
Contact Material: Copper Alloy
Termination Style: SMD/SMT
Number of Contacts: 16 Contact
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
