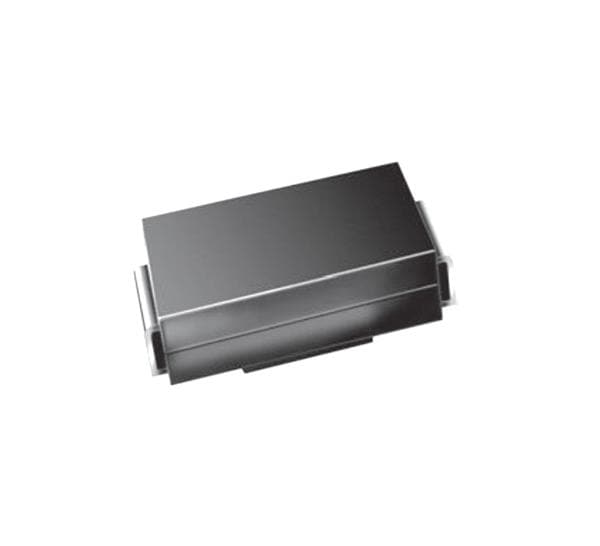

Vishay General Semiconductor SMAJ5.0A TVS Diodes 400W 5.0V 5% Uni
Manufacturer: Vishay General Semiconductor Model: SMAJ5.0A - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Polarity: Unidirectional
Unit Weight: 64 mg
REACH - SVHC: Details
Working Voltage: 5 V
Clamping Voltage: 9.2 V
Breakdown Voltage: 6.4 V
Termination Style: SMD/SMT
Number of Channels: 1 Channel
Vf - Forward Voltage: 3.5 V
Pd - Power Dissipation: 3.3 W
Ipp - Peak Pulse Current: 43.5 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Pppm - Peak Pulse Power Dissipation: 400 W
