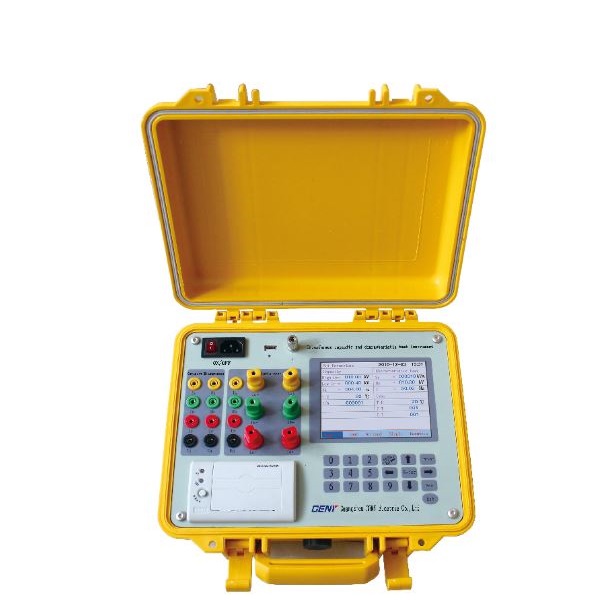

GENY YCTC-9901 Transformer Capacity Tester (0~10V, 0~10A)
Manufacturer: GENY Model: YCTC-9901 Origin: China Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Built-in output power supply used for capacity test:
- Voltage output range: 0~10V
- Current output range: 0~10A
External power supply for test of the transformer characteristics:
- Voltage measurement range: 0-750V
- Current measurement range: 0-80A
Measurement accuracy
- Voltage, current, frequency: ±0.2%
- Power: ±0.2% (CosФ>=0.3)
±0.5% (0.1<CosФ<=0.3)
±1.0% (0.02<CosФ<=0.1)
- Operating temperature: -10℃~=40℃
- Charging power supply: AC176V-264V, 50Hz
Insulation & power frequency withstand voltage
- Insulation between Volt/cur. input and case: ≥100MΩ
- Power Freq, withstand between signal input and case: 2kV for tests lasting 1 minute
- Dimension(LxWxH): 320x240x130
- Weight: 5.1kg
