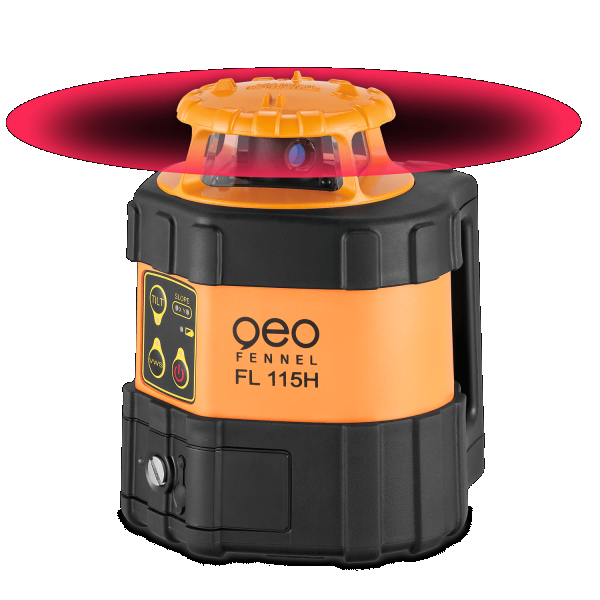

GEO-Fennel FL 115H Rotating Laser (± 5°; LD đỏ; FR 45)
Manufacturer: GEO-Fennel Model: FL 115H P/N: 211001 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Laser diode: red
Self-levelling: horizontal
Visible laser beam: red
Self-levelling range: ± 5°
Accuracy horizontal: 0,5 mm / 10 m
Working range without receiver: Ø 60 m
Working area with FR 45: Ø 1200 m
Working area with FR 77-MM: Ø 900 m
Working range remote control: IR 100 m
Grade: manual
Slope setting manual X-Axis: ± 5° (± 9%)
Slope setting manual Y-Axis: ± 5° (± 9%)
Laser class: 2
Rotating speed rpm: 800
Operating time: 26 h
Dust / water protection: IP 66
Masking (beam screen): yes
Temperature range: -20° to +50°C
TILT-function: yes
VWS function: yes
Supplied with:
· Receiver FR 45 with clamp
· Rechargeable battery and charger
· Battery compartment for alkaline batteries
· Container
