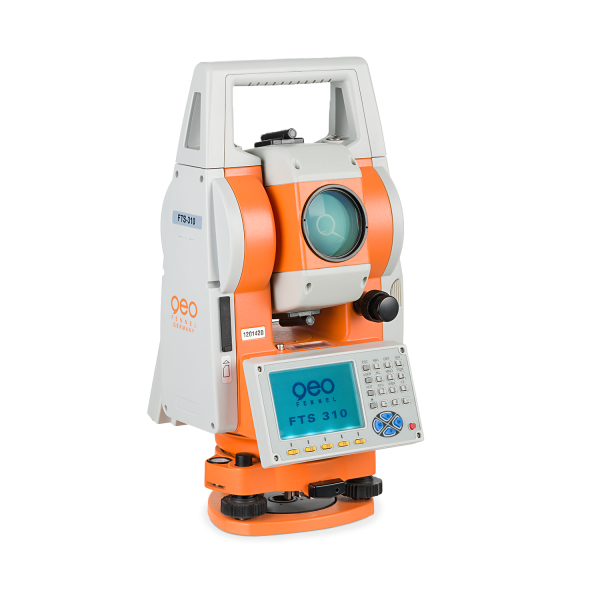

GEO-Fennel FTS 310 Total Station
Manufacturer: GEO-Fennel Model: FTS 310 P/N: 730310 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Laser class: 2
Resolving Power: 3"
Working range: 1.5 - 300 m (Reflectorless), 1.5 - 500 m (Reflective tape target), 1.5 - 5000 m (Single standard prism)
Weight: 6.5 kg
Extended size: 190 x 210 x 350 mm
Temperature range: -20°C to 55°C
Operating time: 2 x 6 h
Visible laser beam: ± 1.5 mm / 1.5 m
Accuracy: +/- 2mm + 2ppm (working range), 2" (angle measurement)
Field of View: 1°30'
Circular bubble: 8' / 2 mm
Minimum reading resolution: 1" / 5" / 10"
Dust / water protection: IP 56
Plate level: 30" / 2 mm
Range: ± 3°
Axis: 2
Angle units: 100 % / 360° / 400 gon
Image: Erect
Shortest focussing distance: 1.5 m
Telescope magnification: 30 x
Objective diameter: 45 mm
Power supply: NiMH Akku
