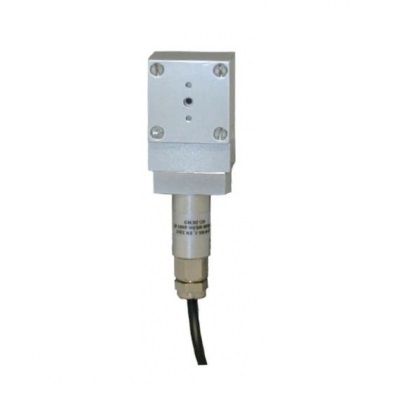

Gigahertz-Optik ISD-0.8-SiLP-1 Detector head for the measurment of radiant flux (W) (BNC connector)
Manufacturer: Gigahertz-Optik Model: ISD-0.8-SiLP-1 P/N: 15298318 Origin: Germany - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
-Spectral responsivity
(400 - 1100) nm radiometric
-Typical responsivity:
33 mA/W @ 633 nm
46 mA/W @ 900 nm
-max. Radiant Power (CW): may be limited by max. operation temperature
-Max. signal current: 1 mA
-Input optics: 2 mm Ø
-Sphere diameter: 8 mm
-Coating: synthetic ODM98
-Mounting: M6 threaded hole
-Sensor: PD-1106
-Measurement ranges:
+ ISD-0.8-SiLP @ 633 nm
min (0.1 pA NEI): 3.0E-12 W
max (200 µA): 6.0E-03 W
max (1 mA): 3.0E-02 W
+ ISD-0.8-SiLP @ 900 nm
min (0.1 pA NEI): 2.2E-12 W
max (200 µA): 4.43E-03 W
max (1 mA): 2.2E-02 W
-Connector: coaxial cable 2 m Long, with BNC (-1)
-Temperature range: 5 - 40°C
