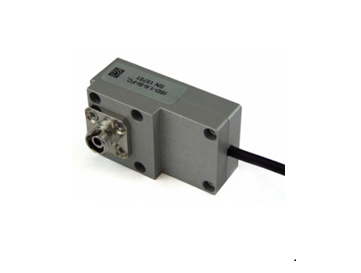

Gigahertz-Optik ISD-1.6-Si-FC-1 Integrating sphere detector (Plug type 1, 400 - 1100nm)
Manufacturer: Gigahertz-Optik Model: ISD-1.6-Si-FC-1 P/N: 15297950 Origin: Germany - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Sphere diameter: 16 mm
Size input optic: 3 mm
Spectral range: 400 - 1100nm
Coating: Bariumsulfate
Rise time: 100 ns
Max. signal current: 1 mA
Typical responsivity: 2.10E-04 A/W @ 633 nm
Measurement ranges:
min (0.1 pA): 4.76E-10 W
max (200 µA): 9.52E-01 W
max (1 mA): 4.76 W
Temperature range:
Application: (10 to 30)°C
Storage: (-10 to 50)°C
Humidity: The device must not be exposed to high humidity. Range 20% ~ 70% RH not condensing.
