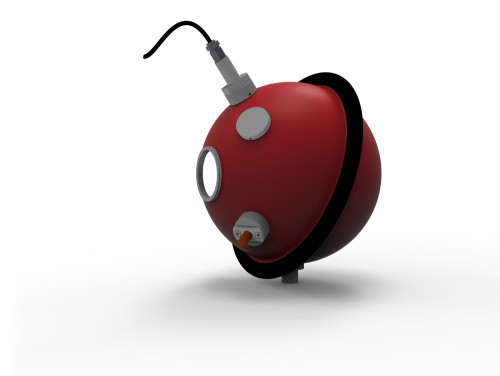

Gigahertz-Optik ISD-15-Si (-4 Con.) Detector head for the measurment of radiant flux (W) (ITT connector)
Manufacturer: Gigahertz-Optik Model: ISD-15-Si (-4 Con.) P/N: 15298341 Origin: Germany - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
-Sphere diameter: 150 mm
-Port size: 38.1 mm
-Coating: ODP97
-Spectral range: 400 - 1100nm Si Photodiode
-Typical responsivity:
600 µA/W @ 633 nm
700 µA/W @ 900 nm
-Measurement ranges:
+ ISD-15-Si @ 633 nm
min (0.1 pA): 1.67E-10 W
max (200 µA): 0.333 W
max (1 mA): 1.67 W
+ ISD-15-Si @ 900 nm
min (0.1 pA): 1.43E-10 W
max (200 µA): 0.286 W
max (1 mA): 1.43 W
-Max. signal current: 1 mA
-Cable Length: 2m
-Plug Types: -1,-2,-4
-Calibration: Calibration of spectral responsivity in A/W in 10nm steps from 400 to 1100nm
-Rise time: 0.5 µs
-Temperature range: 5 - 40°C
-Plug Types: -4
