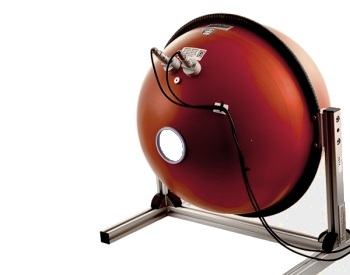

Gigahertz-Optik ISD-30-Si-1 Detector head for the measurment of radiant flux (W) (BNC connector)

-Sphere diameter: 300 mm

-Port Size: 100 mm

-Coating: ODP97

-Spectral responsivity:

400nm - 1100 nm Si Photodiode

-Typical responsivity:

0.2 mA/W @ 633 nm

0.25 mA/W @ 900 nm

25 µA/W @ 1300 nm

18 µA/W @ 1550 nm

-Max. signal current: 1 mA

-Cable Length: 2m

-Rise time: 0.5 µs

-Spectral range: (400 - 1100) nm

-Measurement ranges:

+ ISD-30 @ 633 nm

min (0.1 pA): 5.00E-10 W

max (200 µA): 1.0 W

max (1 mA): 5.0 W

+ ISD-30 @ 900 nm

min (0.1 pA): 4.00E-10 W

max (200 µA): 0.8 W

max (1 mA): 4.0 W

+ ISD-30 @ 1300 nm

min (0.1 pA): 4.00E-09 W

max (200 µA): 8.0 W

max (1 mA): 40 W

+ ISD-30 @ 1500 nm

min (0.1 pA): 5.56E-09 W

max (200 µA): 11 W

max (1 mA): 55 W

-Temperature range: 5 - 40°C

-Plug Types: -1

-Options:

+ ISD-AUX: Optional UMPF-0.5 auxiliary port with UMPP-0.5 port plug.

+ ISD-SMA: Optional UMPF-0.5_UMPA-0.5/11_UFC-11-SMA detector port with SMA connector
