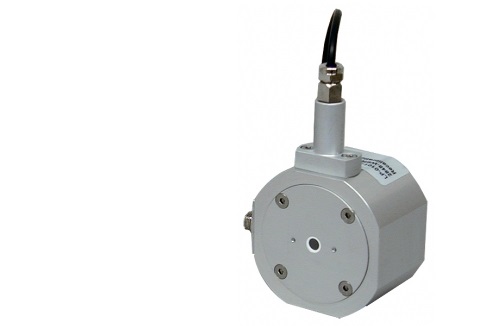

Gigahertz-Optik ISD-3P-IGA-3 Detector head for the measurment of radiant flux (W) (ITT connector)

-Spectral range: 800 nm - 1800 nm radiometric

-Typical responsivity:

1.63E-04 A/W @ 1300 nm

1.94E-04 A/W @ 1550 nm

-Measurement ranges:

+ ISD-3P-IGA @ 1300 nm

min (0.1 pA): 6.13E-10 W

max (200 µA): 1.23 W

max (1 mA): 6.13 W

+ ISD-3P-IGA @ 1550 nm

min (0.1 pA): 5.15E-10 W

max (200 µA): 1.03 W

max (1 mA): 5.15 W

-max. Radiant Power (CW): may be limited by max. operation temperature

-Max. signal current: 1 mA

-Input optics: 5 mm Ø

-Sphere diameter: 30 mm

-Coating: synthetic ODM98

-Sensor: InGaAs photodiode

-Spectral range: 800 - 1800nm

-Rise time: 0.875 ns

-Mounting: M6 thraded hole

-Connection cable: coaxial cable 2m Long, with ITT (-4) connector

-Temperature range: 5 - 40°C
