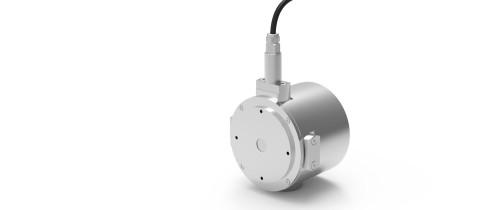

Gigahertz-Optik ISD-5P-IGA-2 Detector head for the measurment of radiant flux (W) (Calibration data connector)

-Spectral range: 800 - 1800 nm

-Typical responsivity:

1.58E-04 A/W @ 1300 nm

1.71E-04 A/W @ 1550 nm

-Measurement ranges:

+ ISD-5P-IGA @ 1300 nm

min (0.1 pA): 6.33E-10 W

max (200 µA): 1.27 W

max (1 mA): 6.33 W

+ ISD-5P-IGA @ 1550 nm

min (0.1 pA): 5.85E-10 W

max (200 µA): 1.17 W

max (1 mA): 5.85 W

-Max. signal current: 1 mA

-Input optics: 10 mm Ø

-Sphere diameter: 50 mm

-Coating: synthetic ODM98

-Sensor: InGaAs photodiode

-Rise time: 0.875 ns

-Mounting: M6 thraded hole

-Connection cable: coaxial cable 2m Long, with calibration data connector (-2)

-Temperature range: 5 - 40°C
