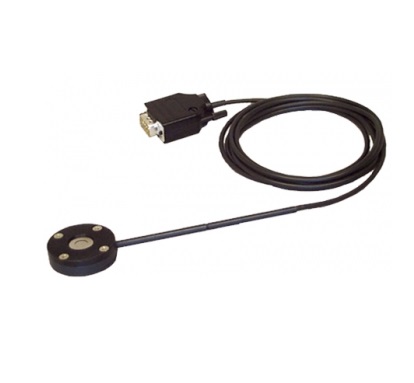

Gigahertz-Optik LP-9901-4 Detector head for the measurment of radiant flux (W) (ITT connector)
Manufacturer: Gigahertz-Optik Model: LP-9901-4 P/N: 15295720 Origin: Germany - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
-Spectral responsivity: 400 nm - 1100 nm Si & ND Filter
-Active Area: 7 mm Ø
-Typical responsivity:
1.3 mA/W @ 633 nm
20 mA/W @ 900 nm
-max. radiant power:
100 mW @ 633 nm @ 1 mA
50 mW @ 900 nm @ 1 mA
-Cable Length: 2m with ITT (-4) connector
-Max. signal current: 1 mA
-Temperature range: 0 - 40°C
-Calibration: Calibration of radiant power responsivity in A/W and calculated spectral irradiance sensitivity in A/(W/m²) in
steps of 10 nm from 400 nm to 1100 nm
