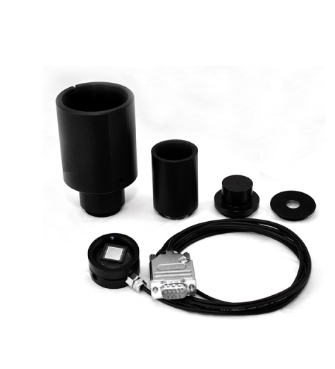

Gigahertz-Optik MD-37-SU100-VL-2 Modular Detector (Calibration data connector)
Manufacturer: Gigahertz-Optik Model: MD-37-SU100-VL-2 P/N: 15297801 Origin: Germany - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Sensor: Si-photodiode with 9 mm x 9 mm V(λ) correction filter
Spectral responsivity: V(λ), f1' ≤ 6%
Typical responsivity: 22 nA/lx
Max. signal current: 1 mA
min. signal current: depends on optometer
Rise time: 7 µs
Temperature range: 5 - 40°C
Connector: 2m long coaxial cable, connection cable with calibration data plug
