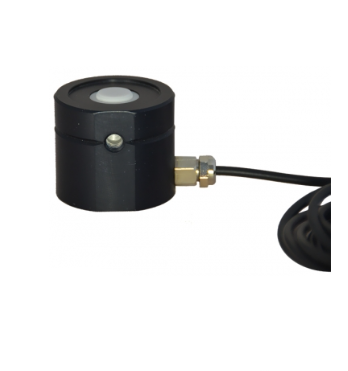

Gigahertz-Optik PS-3701 (-1 Connector) Photosynthetic Active Radiation (PAR) detector (BNC connector)

Spectral responsivity: PAR Actinic 400 nm - 700 nm

Typical responsivity: 100 nA/(µMol·m²·s)

Max. signal current: 1 mA

Size input optic: 15 mm Ø Diffuser

Temperature range: 5 - 40°C

Cable Length: 2 m

Plug Types: -1

min. signal current: depends on optometer

Rise time: 2 µs

Measurement ranges:

min (0.1 pA NEI): 1.00E-06 µMol·m²·s

max (200 µA): 2.00E+03 µMol·m²·s

max (1 mA): 1.00E+04 µMol·m²·s
