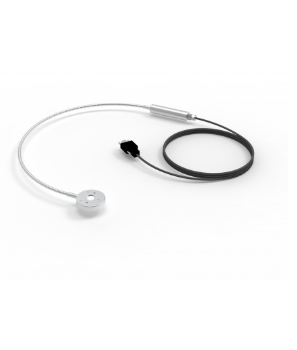

Gigahertz-Optik RCH-010-4 Blue and UV Curing Detectors

Measurement ranges: Spectral responsivity 240 nm to 320 nm. Linear measuring range from 0.1 mW / cm² to 40,000 mW / cm² with measuring device X1-1

Input optics: 9 mm, diffuser

Dimensions:

Measurement head: Height: 8 mm / Diameter: 37 mm

Detector element: Length: 65 mm / Diameter: 15 mm

Light Guide: Flexible: 50 cm / 20 inch

Typical responsivity: H-Type 240 nm - 320 nm: 0.7 nA/(mW/cm²)

max. Irradiance: 40 W/cm²

Max. signal current: 50 µA

Temperature range: up to + 100 °C (short-term)

Humidity: <80%, non-condensing

Cable Length: 50 cm

Connector: -4

Details

Datasheet
