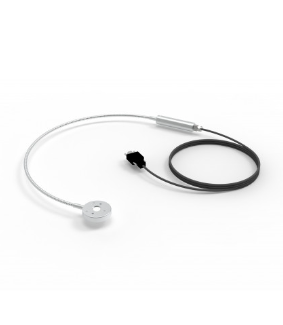

Gigahertz-Optik RCH-016-1 Blue and UV Curing Detectors (BNC connector)
Manufacturer: Gigahertz-Optik Model: RCH-016-1 P/N: 15310813 Origin: Germany - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Measurement ranges: Spectral responsivity 360 nm to 450 nm. Linear measuring range from 0.1 mW / cm² to 40,000 mW / cm² with measuring device X1-1
Input optics: 9 mm, diffuser
Dimensions:
Measurement head: Height: 8 mm/ Diameter: 37 mm
Detector element: Length: 65 mm/ Diameter: 15 mm
max. Irradiance: 40 W/cm²
Max. signal current: 100 µA
Temperature range: up to +100 °C (short-term)
Humidity: <80%, non-condensing
Cable Length: 50 cm
Connector: BNC (-1)
