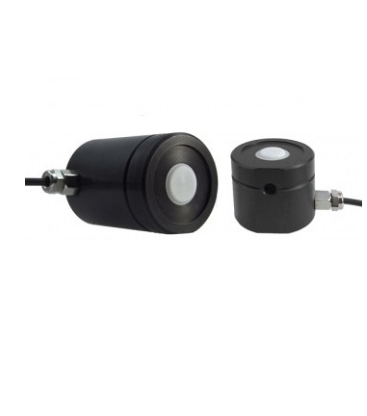

Gigahertz-Optik UV-3717-4 High Sensitivity Broadband UV Irradiance Detector (ITT connector)

Spectral responsivity: UV-A 325-400 nm

Typical responsivity: 1 nA/(W/m²)

Max. signal current: 100 µA

Input optics: 11 mm Ø diffusor window

Input optics: Cosine F.O.V

Housing: 37 mm Ø, 32 mm height

Mounting: side M6 thread hole

Connector: coaxial cable 2 m Long, with ITT connector (UV-3717-4)

Temperature range: 5 - 40°C

min. signal current: depends on optometer

Details

Datasheet
