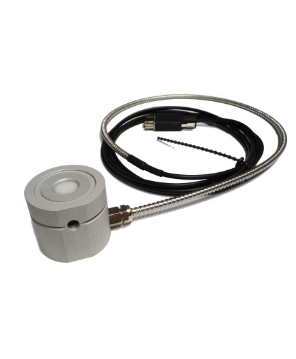

Gigahertz-Optik UV-3726-2 High Sensitivity Broadband UV Irradiance Detector (Calibration data connector)
Manufacturer: Gigahertz-Optik Model: UV-3726-2 P/N: 15311750 Origin: Germany - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Spectral responsivity: UV 240 nm - 320 nm
Typical responsivity: 50 µA/(W/cm²)
Max. signal current: 50 µA
Input optics: 11 mm Ø diffusor window
Input optics: Cosine F.O.V.
Housing: 37 mm Ø, 32 mm height
Mounting: side M6 thread hole
Connector: coaxial cable 2 m Long, with calibration data connector (UV-3726-2)
+ temperature coefficient: -0.134 %/°C
(*determined with 254 nm lamp)
min. signal current: depends on optometer
