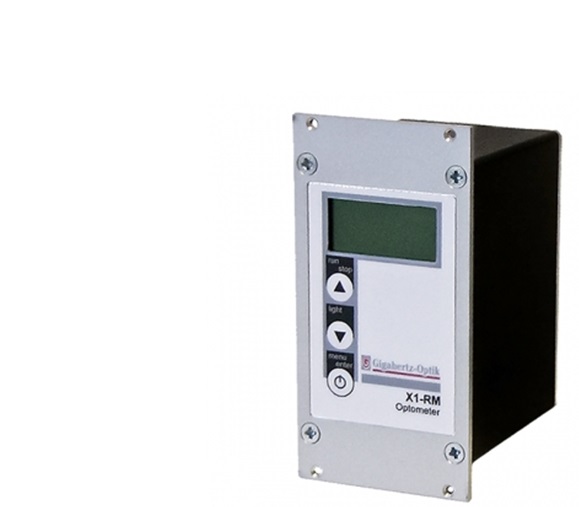

Gigahertz-Optik X1-RM Optometer respectively Current Amplifier for Radiometric or Photometric Applications

-Measurement range:

Wide dynamic current measurement range from 0.1 pA (noise equivalent signal) up to 200 µA. Seven gain ranges with manual or automatic selection. Measurement range in absolute units with given by the detector heads responivity and calibration.

-Typical applications: Measurement device for system integrations.

-Calibration:

Calibration and comparison of the current responsivity in each of the seven gain ranges. Memory for calibration data of several detector heads for measuremen in the absolute unit of the selected detector head.

-Power Supply: (7 - 20) VDC / 100 mA; plug 5,5 / 2,5 mm / 10 mm (+ at middle contact)

-Display:

LCD graphic display 97x32 pixel, display area 14.3 mm x 35.8 mm

switchable LED-backlight, text display 4 rows each 14 characters

-Detector interface: 9pin MDSM9 socket, 4 inputs

-Parameter adjustment: Remote control or front panel buttons (menu), adjusted values permanently stored in Eeprom

-Front panel control: 3 buttons, menu system

-Interface:

USB V1.1 (HID Device)

RS485 or RS232 (factory set) / 19200 Baud (Slave Mode)

-Analog input: 4 voltage measurement channels; (0 - 20) VDC, input resistance 1 MOhm, 12 bit ADC

-CW integration time: 1 ms – 1 s

-Sampling rate: internal sampling rate ADC 250 µs

-Temperature range:

operation: (5 to 40)°C

storage: (-10 to 50)°C

-Dimensions:

65.5 mm x 105 mm x 80 mm

19", 3HE, 13TE

-Weight: 500 g

-Humidity: <80%, non-condensing
