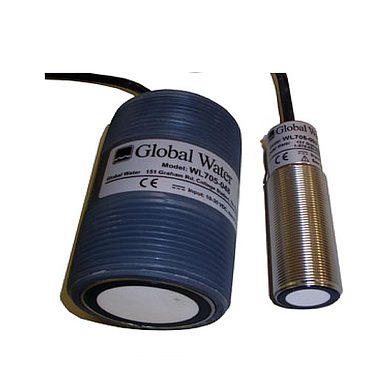

Global Water WL705-012 ULTRASONIC WATER LEVEL SENSOR (0.33-12 ft)
Manufacturer: GLobal Water Model: WL705-012 Origin: USA Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Ranges: 0.33 to 12 ft
Resolution: 0.035 in
Repeatability: Greater of ±0.03 inches (0.76 mm) or 0.1% of range @ constant temperature
Accuracy: Better than 0.5% of range @ constant temperature; affected by temperature gradients, target echo strength, and speed of sound in vapors
Transducer Type: Ruggedized piezoelectric
Beam Angle: 12° conical shaped pattern
Power: 10 to 30 VDC @70 mA max
Output: 4-20 mA (4 mA is minimum water level and 20 mA is maximum water level)
Update Rate: 50 ms
Warm Up Time: 15 seconds
Operating Temperature Range: -40° to 158°F (-40° to 70°C)
Humidity: 0-100% (avoid heavy condensation)
Housing Material: 303 stainless steel
Mounting: 30x1.5 mm threaded housing
Dimensions: 4.062 in. long x 1.05 in. dia. (103.2 L x 26.7 Dia mm)
Weight: 12.7 oz (0.36 g)
Includes 6 ft cable
