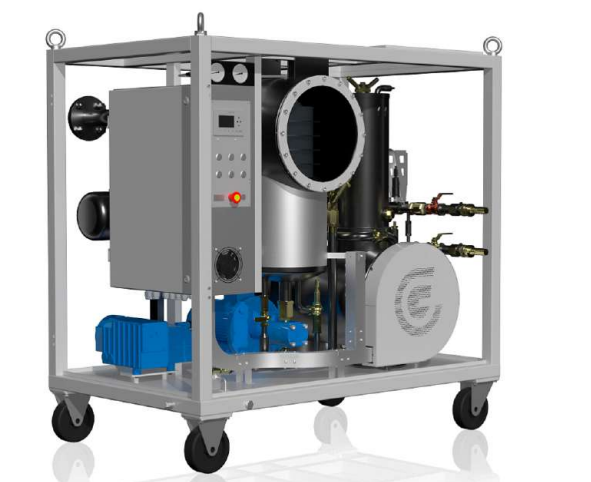

GlobeCore UVM-2 Transformer oil processing unit (2.0 m3/h, 31kW)
Manufacturer: GlobeCore Model: UVM-2 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Productivity, m3/h (gal/hour): 2.0 (528)
Max output oil temperature, ºС (ºF): 60 (140)
Processed oil parameters (with initial moisture content not more than 100 g/t):
+ filtration fineness, µm: 5
+ breakdown voltage, kV, min: 75
+ ISO 4406 cleanliness: -/14/12
Input oil pressure, Mpa (Psi), max : 0.1 (14.5)
Output oil pressure, Mpa (Psi), max : 0.25 (36)
Oil heater power consumption, kW, max: 31
Specific surface power of the heater, W/cm2 (W/in2 ), no more: 1.1 (7)
Power consumption, max, kW: 36
The power supply parameters: Any options on customer's request
Overall dimensions, max, mm (in):
+ length: 1500 (59)
+ width : 1000 (39)
+ height: 1550 (61)
Weight, kg (pound), max: 635 (1400)
