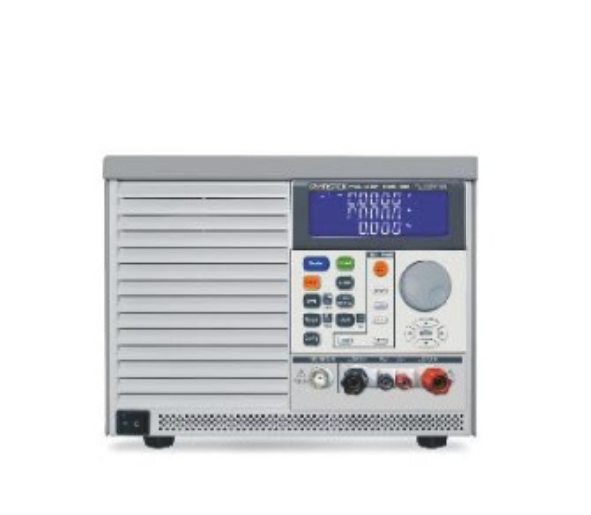

GW INSTEK PEL-507-80-140 DC Electronic Load (140A, 80V, 700W)
Manufacturer: GW INSTEK Model: PEL-507-80-140 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Power: 700 W
Current: 140A
Voltage: 80V
Min. Operating Voltage: 0.9V/@140A
Protections: OPP, OCP, OVP, OTP
CC Mode: 0~14.04A~140.4A , Accuracy: 0.1%
CR Mode: 0.0057~0.57~34200Ω , Accuracy: 0.2%
CV Mode: 0~8.1~81V , Accuracy: 0.05%
CP Mode: 0~70.2~700.2W , Accuracy: 0.5%
Dynamic Mode : 10uS to 9.999s, THIGH/TLOW
Surge Current: 0~140A, 10-1000ms
Battery Discharge Test: 0-81V, 1-99999s, 0.1~19999.9AH
Measurements: DCV, DCA, DCW
Power Input: 115/230Vac
Interface: USB/RS232
Dimension & Weight: 205x231x480 mm, 10.3kg
Accessories: Main unit, power cord, manual
