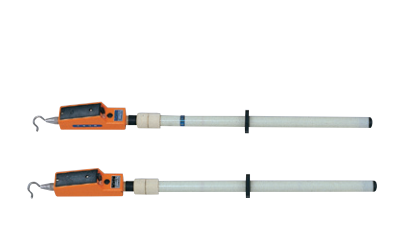

HASEGAWA HP-S3 Medium Voltage Phase Checker (3,3kV)
Manufacturer: HASEGAWA Model: HP-S3 Origin: Japan Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
■Specifications
Working voltage range: 3.3kV
Frequency: 50 Hz or 60 Hz (Either one is to be designated)
Phase test function: Discrimination of in-phase or different phase of 120°
* Attention: There is no phase sequence (phase rotation) function.
Possible distance of phase test: Distance between transmission side and reception side: Within 5m
Total length:
When extended: 1220mm
When shortened: 850mm
Indication of operation:
- Light: It shall be able to confirm in the luminance of 8,000 lux.
- Sound: 50 dB or more at a distance of 3m
Battery: 6R61 or 6F22(9V), each 1 pcs
Operating temperature range: －10℃～＋50℃
Structure: Waterproof
Weight: 900g×2
Dielectric strength:
-Insulating stick (except for the antenna portion): Insulating stick - surface: Interval of 30cm, 75kV, 5 min
■Accessory: Bag for housing
