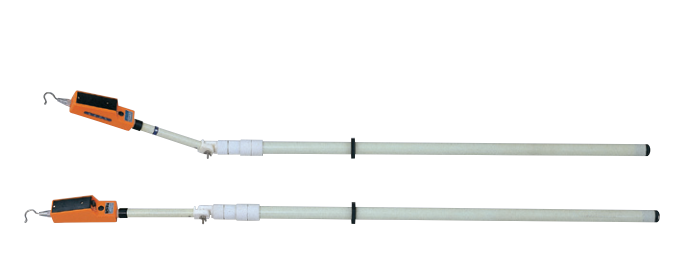

HASEGAWA HP-U6 Medium Voltage Phase Checker (6.6kV)

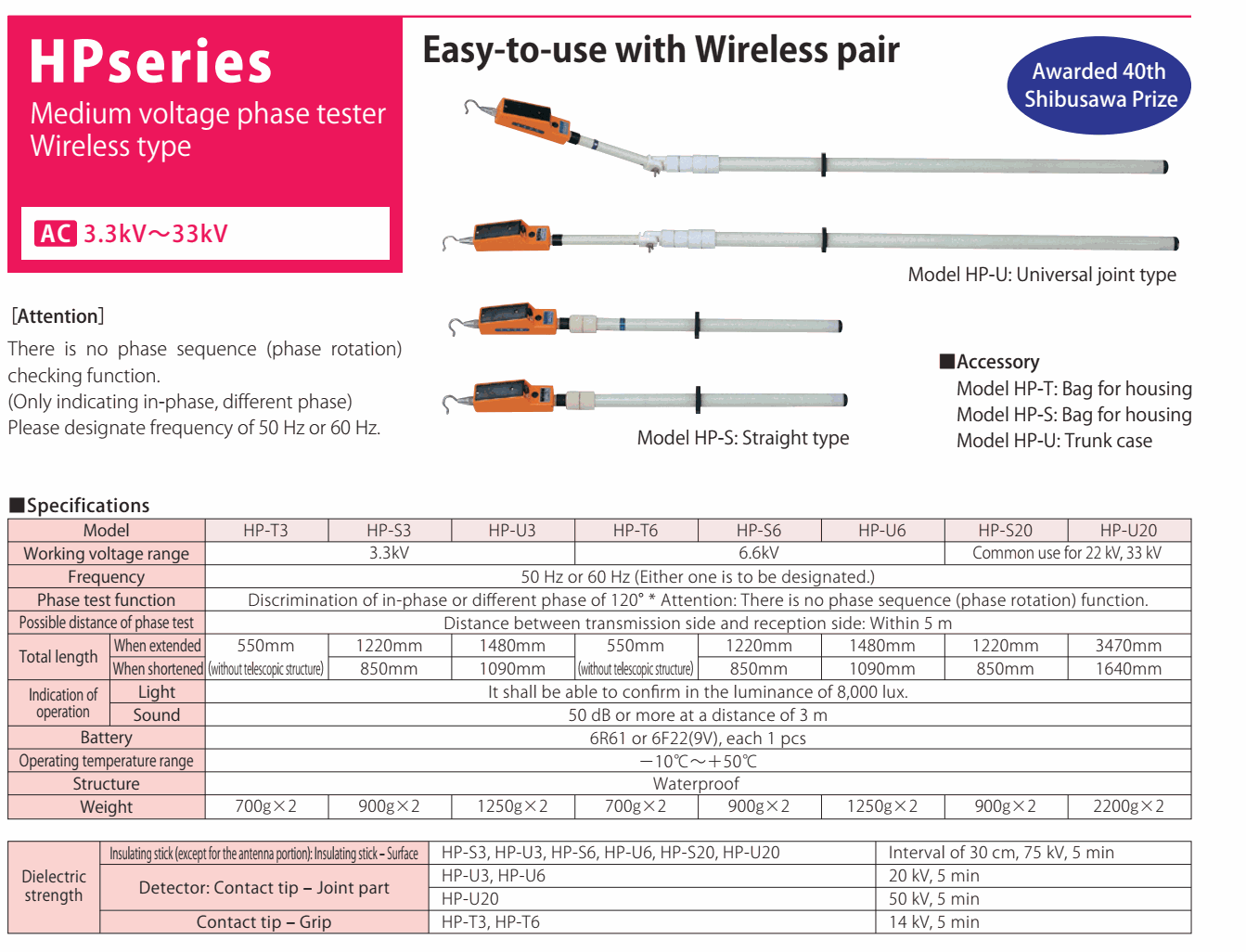

■Specifications

Working voltage range: 6.6kV

Frequency: 50 Hz or 60 Hz (Either one is to be designated)

Phase test function: Discrimination of in-phase or different phase of 120°

 * Attention: There is no phase sequence (phase rotation) function.

Possible distance of phase test: Distance between transmission side and reception side: Within 5m

Total length:

When extended: 1480mm

When shortened: 1090mm

Indication of operation:

- Light: It shall be able to confirm in the luminance of 8,000 lux.

- Sound: 50 dB or more at a distance of 3m

Battery: 6R61 or 6F22(9V), each 1 pcs

Operating temperature range: －10℃～＋50℃

Structure: Waterproof

Weight: 1250g×2

Dielectric strength:

-Insulating stick (except for the antenna portion): Insulating stick - surface: Interval of 30cm, 75kV, 5 min

-Detector: Contact tip-Joint part: 20kV, 5 min

■Accessory:

Trunk case
