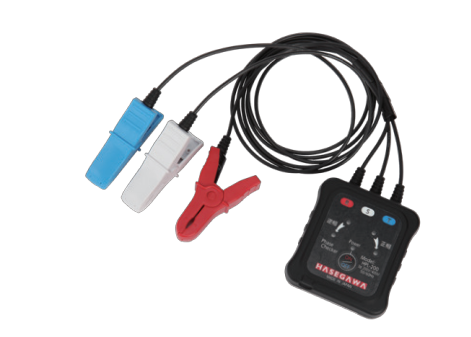

HASEGAWA HPL-200 Low Voltage Phase Checker (AC 80~600 V)
Manufacturer: HASEGAWA Model: HPL-200 Origin: Japan Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
■Specifications
Applicable circuits: 3-phase 3-line system and 3-phase 4-line system
Working voltage range: AC 80 V to 600 V (Sine wave, continuous) 45～66Hz
Dielectric resistance: 100 MΩ or more, using 500 V megger (Between clip and case)
Dielectric strength: AC 2,000 V, one minute (Between clip and case)
Leakage current: During dielectric strength testing, 100 μA or less
Power supply display: Red LED × 1 (Automatic power OFF approx. 5 minutes)
Sound volume: 50 dB or more (50 cm apart)
Battery: LR03(1.5V)×2
Continuous use approx. 15 hours
Electric line: IV, DV, OW 2 mm2 to 100mm2 (Finished external diameter ø2.8mm to 22mm)
Weight: About 190g (including batteries)
